APHF1608 Series

Catalog

MULTI-COLOR LEDS RGB 0603 SMD

Part	Height (Max) [z]	Lens Style	Viewing Angle	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Color	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Lens Size [y]	Lens Size [x]	Lens Color	Wavelength - Dominant	Mounting Type	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak	Lens Transparency	Configuration	Voltage - Forward (Vf) (Typ)	Current - Test
Kingbright APHF1608LSEEQBDZGKC	0.6 mm	Rectangle with Flat Top	140 °	2 mA	2 mA	2 mA	Blue Green Red	1.6 mm	0.8 mm	4-SMD	0.8 mm	1.6 mm	Colorless	465 nm 525 nm 621 nm	Surface Mount	4-SMD No Lead	1.8 V	2.65 V	2.65 V	70 mcd	15 mcd	10 mcd	460 nm 515 nm 630 nm	Clear	Common Anode

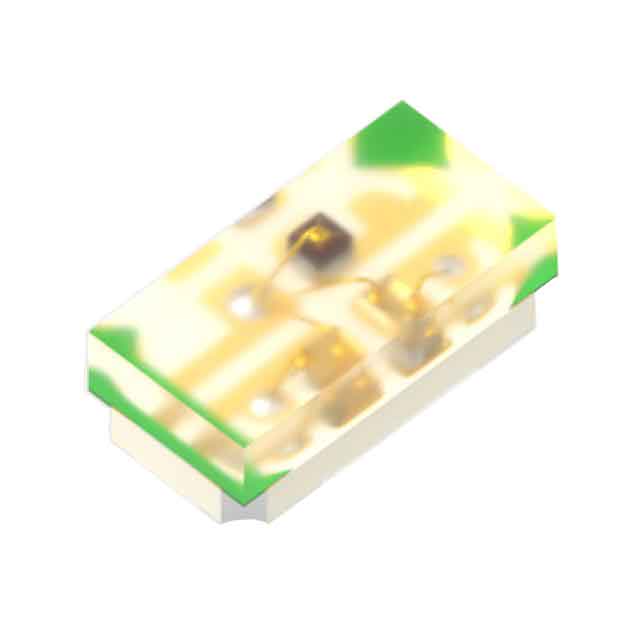

Kingbright APHF1608SEEQBDZGKC	0.6 mm	Rectangle with Flat Top	140 °				Blue Green Red	1.6 mm	0.8 mm	4-SMD	0.8 mm	1.6 mm	Colorless	465 nm 525 nm 621 nm	Surface Mount	4-SMD No Lead				480 mcd	120 mcd	60 mcd	460 nm 515 nm 630 nm	Clear	Common Anode	2 V 3.3 V 3.3 V	20mA Blue 20mA Green 20mA Red
