9402-1083 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

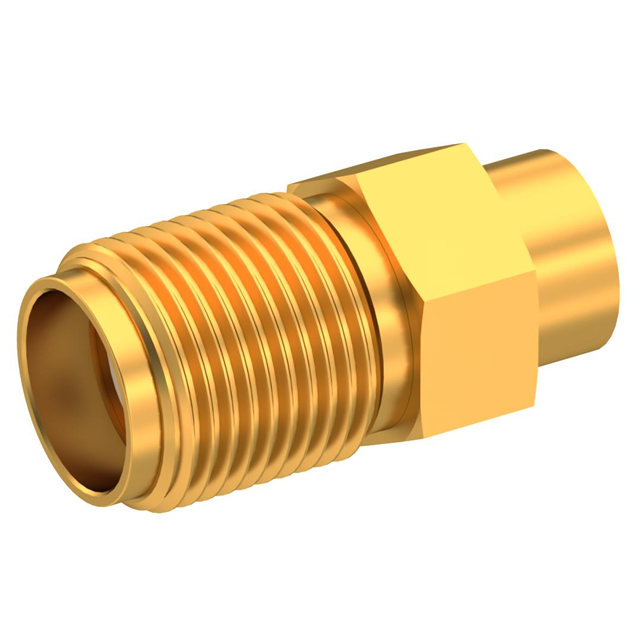

SMA / STRAIGHT JACK FEMALE SOLDE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Voltage Rating | Body Finish | Dielectric Material | Center Contact Plating | Connector Style | Shield Termination | Connector Type | Fastening Type | Housing Color | Mounting Type | Number of Ports | Impedance | Center Contact Material | Frequency - Max [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Stainless Steel | 500 V | Gold | Polytetrafluoroethylene (PTFE) | Gold | SMA | Solder | Female Socket Jack | Threaded | Gold | Free Hanging (In-Line) | 1 | 50 Ohms | Beryllium Copper | 18 GHz | Solder |
