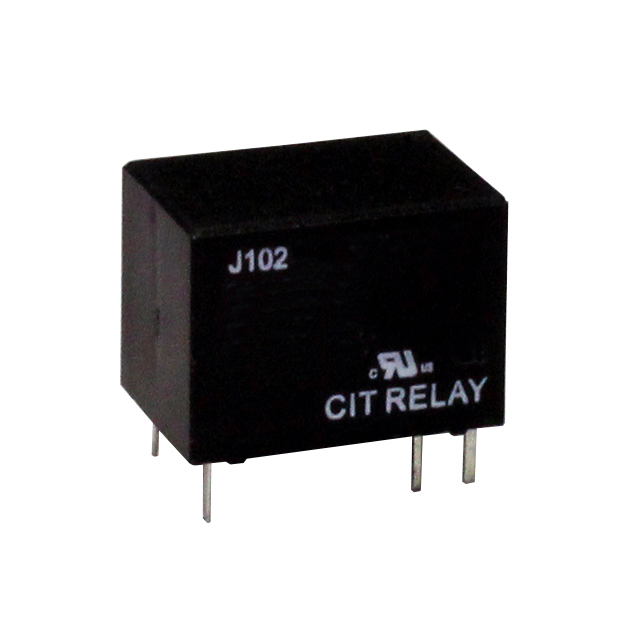

J1021CS Series

Catalog

RELAY GEN PURPOSE SPDT 3A 9V

Part	Coil Resistance	Relay Type	Switching Voltage	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Must Release Voltage	Operate Time	Coil Type	Termination Style	Contact Form	Contact Material	Contact Rating (Current)	Seal Rating	Coil Current	Mounting Type	Release Time	Coil Voltage
CIT Relay and Switch J1021CS39VDC.20	405 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	6.75 VDC	0.9 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)	3 A	Sealed - Fully	22.2 mA	Through Hole	5 ms	9 VDC
CIT Relay and Switch J1021CS35VDC.45	56 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	3.75 VDC	0.5 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)	3 A	Sealed - Fully	89.3 mA	Through Hole	5 ms	5 VDC
CIT Relay and Switch J1021CS3P12VDC.36	400 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	9 VDC	1.2 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver (Ag)	3 A	Sealed - Fully	0.03 A	Through Hole	5 ms	12 VDC
CIT Relay and Switch J1021CS36VDC.20	180 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	4.5 VDC	0.6 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)	3 A	Sealed - Fully	33.3 mA	Through Hole	5 ms
CIT Relay and Switch J1021CS36VDC.45	80 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	4.5 VDC	0.6 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)	3 A	Sealed - Fully	0.075 A	Through Hole	5 ms
CIT Relay and Switch J1021CS3P5VDC.45	56 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	3.75 VDC	0.5 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver (Ag)	3 A	Sealed - Fully	89.3 mA	Through Hole	5 ms	5 VDC
CIT Relay and Switch J1021CS3P6VDC.20	180 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	4.5 VDC	0.6 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver (Ag)	3 A	Sealed - Fully	33.3 mA	Through Hole	5 ms
CIT Relay and Switch J1021CS53VDC.45	20 Ohms	General Purpose	150 VDC 300 VAC	750 W 1500 VA	85 °C	-40 C	2.25 VDC	0.3 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)	5 A	Sealed - Fully	0.15 A	Through Hole	5 ms
CIT Relay and Switch J1021CS36VDC.36	100 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	4.5 VDC	0.6 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)	3 A	Sealed - Fully	0.06 A	Through Hole	5 ms
CIT Relay and Switch J1021CS3P12VDC.45	320 Ohms	General Purpose	150 VDC 300 VAC	450 W 900 VA	85 °C	-40 C	9 VDC	1.2 VDC	5 ms	Non Latching	PC Pin	SPDT (1 Form C)	Silver (Ag)	3 A	Sealed - Fully	0.0375 A	Through Hole	5 ms	12 VDC
