770873 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

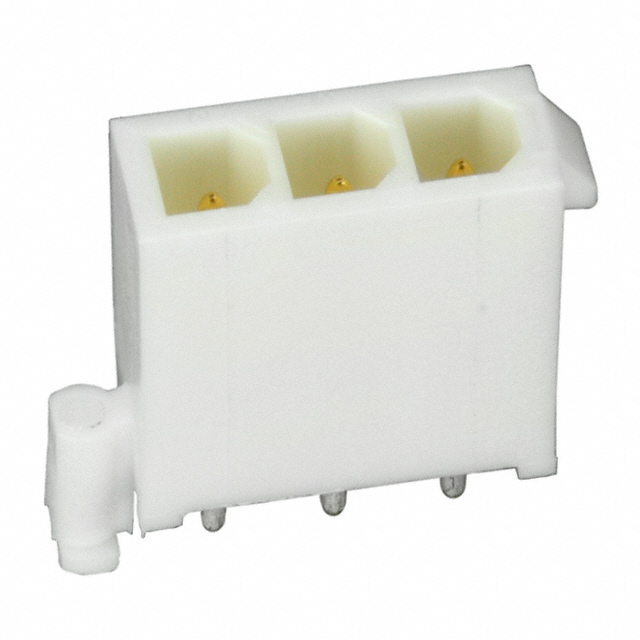

CONN WIRE TO BOARD HDR 3POWER POS 4.14MM SOLDER ST THRU-HOLE BAG
| Part | Applications | Contact Finish Thickness - Post | Contact Finish - Post | Current Rating (Amps) | Contact Material | Mounting Type | Contact Shape | Insulation Material | Connector Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Fastening Type | Material Flammability Rating | Shrouding | Contact Finish - Mating | Number of Rows | Style | Insulation Color | Contact Type | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Features | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Tin-Lead | Varies by Wire Gauge | Brass | Through Hole | Circular | Nylon Polyamide (PA) | Header | Solder | 85 °C | -20 ░C | 0.163 in | 4.14 mm | Locking Ramp | UL94 V-0 | Shrouded - 4 Wall | Tin-Lead | 1 | Board to Cable/Wire | White | Male Pin | All | 13.5 mm | 0.531 in | 150 Áin | 3.81 Ám | 600 VAC | Board Lock | 4.45 mm | 0.175 in |
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Tin-Lead | Varies by Wire Gauge | Brass | Through Hole | Circular | Nylon Polyamide (PA) | Header | Solder | 105 ░C | -20 ░C | 0.163 in | 4.14 mm | Locking Ramp | UL94 V-0 | Shrouded - 4 Wall | Gold | 1 | Board to Cable/Wire | White | Male Pin | All | 13.5 mm | 0.531 in | 30 Áin | 0.76 Ám | 600 VAC | Board Lock | 4.45 mm | 0.175 in |
