OSTTS07 Series

Catalog

TERM BLOCK PLUG 7POS 5.08MM

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Pitch [x]	Pitch [x]	Voltage - UL	Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Number of Levels	Housing Material	Contact Material	Termination Style	Number of Positions	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Color	Material Flammability Rating	Wire Gauge or Range - mm²	Contact Mating Finish	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
On Shore Technology Inc. OSTTS07515D	24 AWG	12 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	300 V	Plug Female Sockets	0.34 mm˛	2.5 mm˛	-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.4 Nm	3.5 Lb-In	7 mm	6 mm	Green	UL94 V-0
On Shore Technology Inc. OSTTS07115D	28 AWG	16 AWG	Free Hanging (In-Line)	0.138 in	3.5 mm	300 V	Plug Female Sockets			-40 °C	115 °C	7	1	Brass	Brass	Screw	7	0.2 Nm	1.7 Lb-In	7 mm	6 mm	Green	UL94 V-0	1.5 mm²

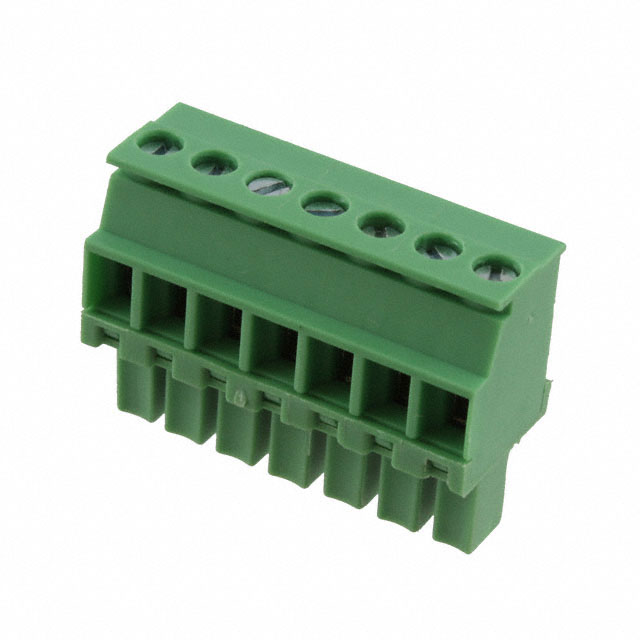

On Shore Technology Inc. OSTTS07315B	28 AWG	16 AWG	Free Hanging (In-Line)	0.15 in	3.81 mm	300 V	Plug Female Sockets			-40 °C	115 °C	7	1	Brass	Brass	Screw	7	0.2 Nm	1.7 Lb-In	7 mm	6 mm	Green			Nickel	1.5 mm˛
On Shore Technology Inc. OSTTS07015B	24 AWG	12 AWG	Free Hanging (In-Line)	0.3 in	7.62 mm	300 V	Plug Female Sockets			-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.4 Nm	3.5 Lb-In	7 mm	6 mm		UL94 V-0
On Shore Technology Inc. OSTTS07715A	24 AWG	12 AWG	Free Hanging (In-Line)	0.197 in	5 mm	300 V	Plug Female Sockets			-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.4 Nm	3.5 Lb-In	7 mm	6 mm	Green	UL94 V-0				0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS07A15B	24 AWG	12 AWG	Free Hanging (In-Line)	0.295 in	7.5 mm	300 V	Plug Female Sockets			-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.4 Nm	3.5 Lb-In	7 mm	6 mm		UL94 V-0
On Shore Technology Inc. OSTTS07A15A	24 AWG	12 AWG	Free Hanging (In-Line)	0.295 in	7.5 mm	300 V	Plug Female Sockets			-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.4 Nm	3.5 Lb-In	7 mm	6 mm		UL94 V-0
On Shore Technology Inc. OSTTS07015A	24 AWG	12 AWG	Free Hanging (In-Line)	0.3 in	7.62 mm	300 V	Plug Female Sockets			-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.4 Nm	3.5 Lb-In	7 mm	6 mm		UL94 V-0
On Shore Technology Inc. OSTTS07A15D	24 AWG	12 AWG	Free Hanging (In-Line)	0.295 in	7.5 mm	300 V	Plug Female Sockets			-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.4 Nm	3.5 Lb-In	7 mm	6 mm		UL94 V-0
On Shore Technology Inc. OSTTS07115A	28 AWG	16 AWG	Free Hanging (In-Line)	0.138 in	3.5 mm	300 V	Plug Female Sockets			-30 ░C	105 ░C	7	1	Brass	Brass	Screw	7	0.2 Nm	1.7 Lb-In	7 mm	6 mm	Green		1.5 mm²
