MAX77863 Series

Complete System PMIC, Featuring 13 Regulators, 8 GPIOs, RTC, and Flexible Power Sequencing for Multicore Applications

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Complete System PMIC, Featuring 13 Regulators, 8 GPIOs, RTC, and Flexible Power Sequencing for Multicore Applications

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package [custom]	Package / Case	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply	Applications

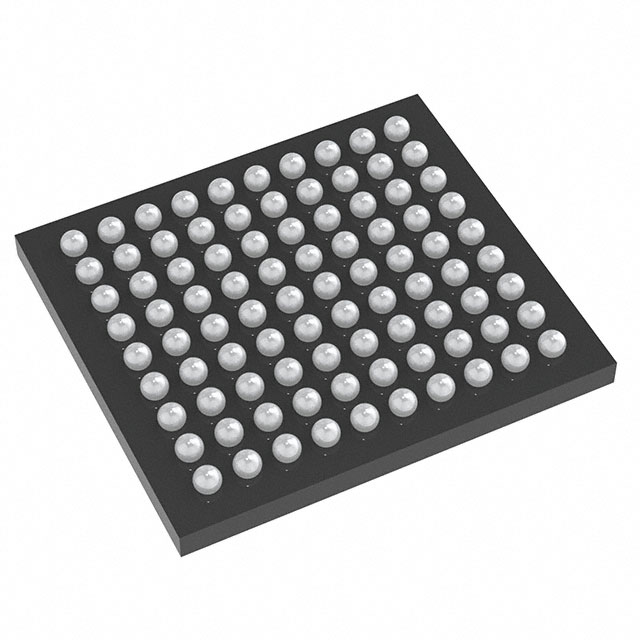

Analog Devices Inc./Maxim Integrated MAX77863AEWJ+T	85 C	-40 ¯C	4.09	3.78	90-WLP	90-WFBGA WLBGA	Surface Mount	5.5 V	2.6 V	42 µA	General Purpose
Analog Devices Inc./Maxim Integrated MAX77863AEWJ+	85 C	-40 ¯C	4.09	3.78	90-WLP	90-WFBGA WLBGA	Surface Mount	5.5 V	2.6 V	42 µA	General Purpose

Catalog

Complete System PMIC, Featuring 13 Regulators, 8 GPIOs, RTC, and Flexible Power Sequencing for Multicore Applications

Description

The MAX77863 is a complete power management IC (PMIC) for mobile devices using multicore application processors.It is available in a wafter-level package (WLP) to be used in space-constrained applications.The IC offers a total of 13 regulators. Two regulators have differential remote sensing and are rated for both continuous and peak output current.Numerous factory-programmable options allow the IC to be tailored for many applications. Contact the factory for more information about programmable options; minimum order quantities may apply.ApplicationsNetbooksTablet PCsPersonal Internet ViewerDigital Photo FramesSet-Top BoxesSmartphonesGPSAutomotive Aftermarket Accessories
