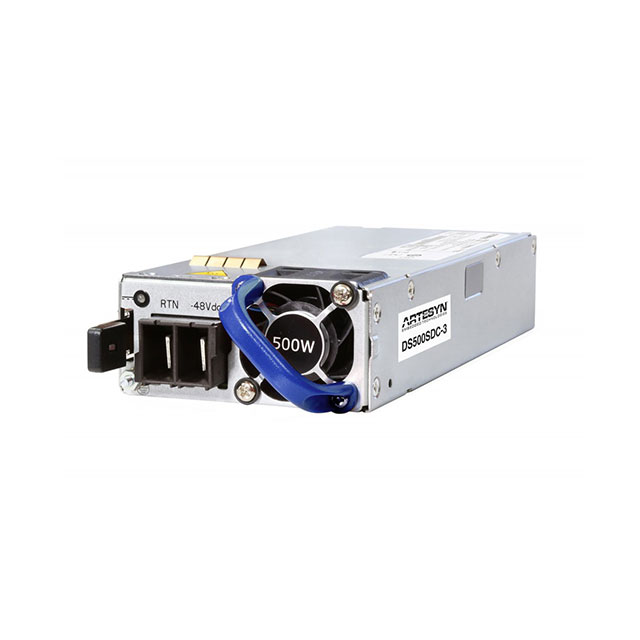

DS500SDC Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
-48V DC-INPUT, 12V AND 12VSP OUTPUT, 500W 1U X 3.4" X 7.8", FORWARD AIR
| Part | Minimum Load Required | Efficiency | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Current - Output 2 | Voltage - Output 2 | Type | Number of Outputs | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Mounting Type | Features | Power (Watts) | Voltage - Output 1 | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 90 % | ITE (Commercial) | 50 °C | 0 °C | 41.67 A | 3 A | 12 V | Front End | 2 | 86.3 mm | 3.4 in | 7.74 " | 196.5 mm | 1.58 in | 40.2 mm | Rack Mount | DC Input Capable I2C Interface Load Sharing Remote On/Off Remote Sense Standby Output | 500 W | 12 V | CB CCC CE cUL DEMKO UL |
