66011 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

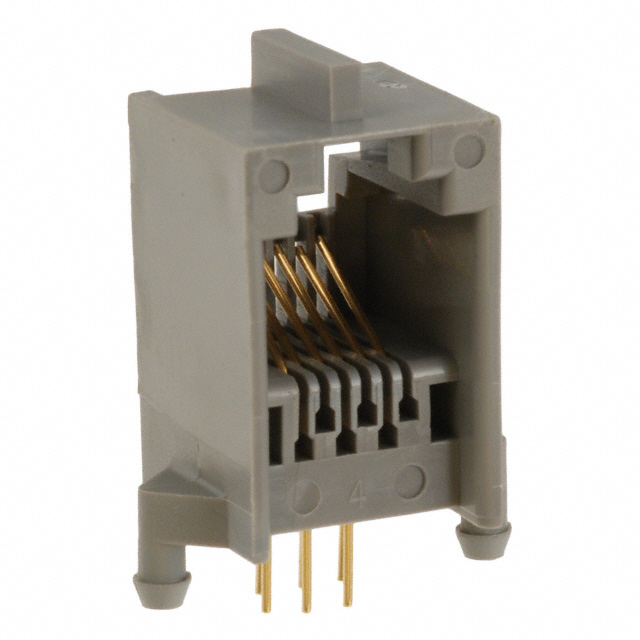

CONN MOD JACK 6P6C R/A UNSHLD
| Part | Ratings | Housing Material | Orientation | Tab Direction | Mounting Type | Number of Positions/Contacts | Contact Material | Number of Ports | Shielding | Number of Rows | LED Color | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Finish | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Cat3 | Polyamide (PA) Nylon | 90 ° | Up | Through Hole | 6p6c (RJ11 RJ12 RJ14 RJ25) | Phosphor Bronze | 1 | Unshielded | 1 | Does Not Contain LED | Solder | 50 °C | -55 °C | Board Lock Panel Stops | Gold | Jack | 0.127 µm | 5 µin | |
Amphenol ICC (FCI) | Cat3 | Polyamide (PA) Nylon | 90 ° | Up | Through Hole | 6p6c (RJ11 RJ12 RJ14 RJ25) | Phosphor Bronze | 1 | Unshielded | 1 | Does Not Contain LED | Solder | Board Lock Panel Stops | Gold | Jack | 0.127 µm | 5 µin | |||
Amphenol ICC (FCI) | Cat3 | Polyamide (PA) Nylon | 90 ° | Up | Through Hole | Phosphor Bronze | 1 | Unshielded | 1 | Does Not Contain LED | Solder | Board Lock Panel Stops | Gold | Jack | 0.76 Ám | 30 Áin | 2 6 | |||
 Amphenol ICC (FCI) | Cat3 | Polyamide (PA) Nylon | 90 ° | Up | Through Hole | 6p6c (RJ11 RJ12 RJ14 RJ25) | Phosphor Bronze | 1 | Unshielded | 1 | Does Not Contain LED | Solder | 50 °C | -55 °C | Board Lock Panel Stops | Gold | Jack | 0.76 Ám | 30 Áin |
