160447 Series

Catalog

CONN TERMINAL, QUICK DISCONNECTS TERMINALS

Part	Length - Overall	Length - Overall	Termination	Gender	Tab Thickness	Tab Thickness	Mounting Type	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width	Tab Width	Insulation	Tab Length	Tab Length	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Terminal Type	Contact Finish	Length - Overall [x]	Length - Overall [x]

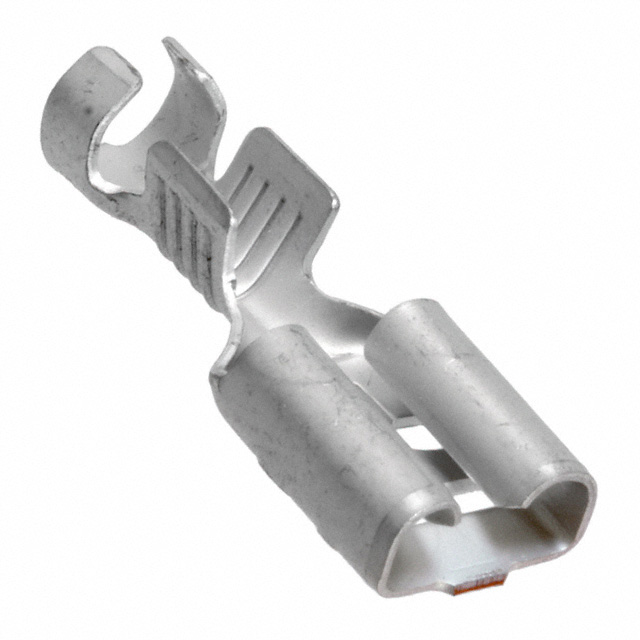

TE Connectivity Raychem Cable Protection 5-160447-2	0.799 in	20.29 mm	Crimp	Female	0.032 in	0.81 mm	Free Hanging (In-Line)	Phosphor Bronze	13 AWG	17 AWG	6.35 mm	0.25 in	Non-Insulated	7.75 mm	0.305 in	0.118 in	3 mm	4.09 mm	0.161 in	Standard	Tin
TE Connectivity Raychem Cable Protection 5-160447-3			Crimp	Female	0.032 in	0.81 mm	Free Hanging (In-Line)	Phosphor Bronze	13 AWG	17 AWG	6.35 mm	0.25 in	Non-Insulated	7.75 mm	0.305 in	0.118 in	3 mm	4.09 mm	0.161 in	Standard	Silver	0.756 in	19.2 mm

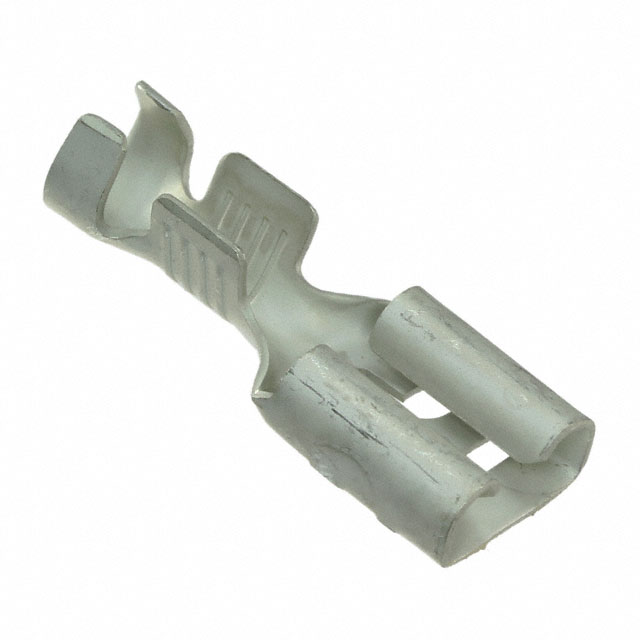

TE Connectivity Raychem Cable Protection 5-160447-5	0.799 in	20.29 mm	Crimp	Female	0.032 in	0.81 mm	Free Hanging (In-Line)	Brass	13 AWG	17 AWG	6.35 mm	0.25 in	Non-Insulated	7.75 mm	0.305 in	0.118 in	3 mm	4.09 mm	0.161 in	Standard	Tin
