06GENW Series

Catalog

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Features	Current Rating - Filter	Approval Agency	Mounting Type	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Connector Type	Connector Style

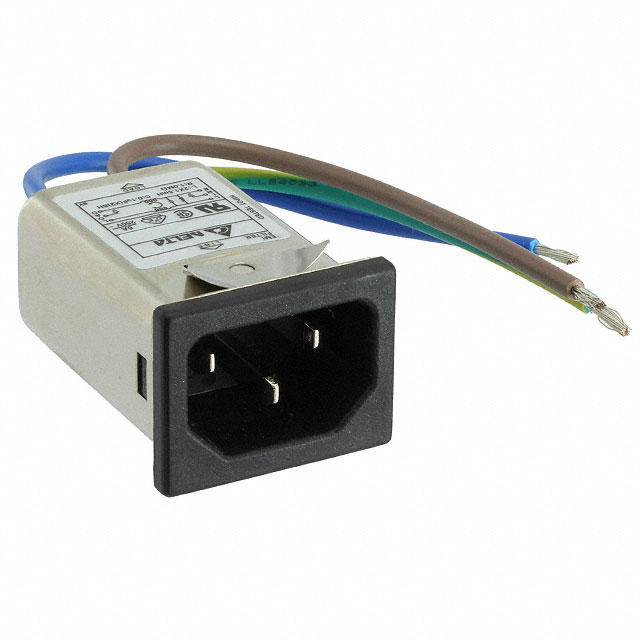

Delta Electronics 06GENW3QM-R	6 A	115 VAC	250 VAC	0.032 in	1.6 mm	0.063 "	0.81 mm	Bleed Resistor	6 A	CSA UL VDE	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	21.9 mm	28.45 mm	Wire Leads	Receptacle Male Blades	IEC 320-C14

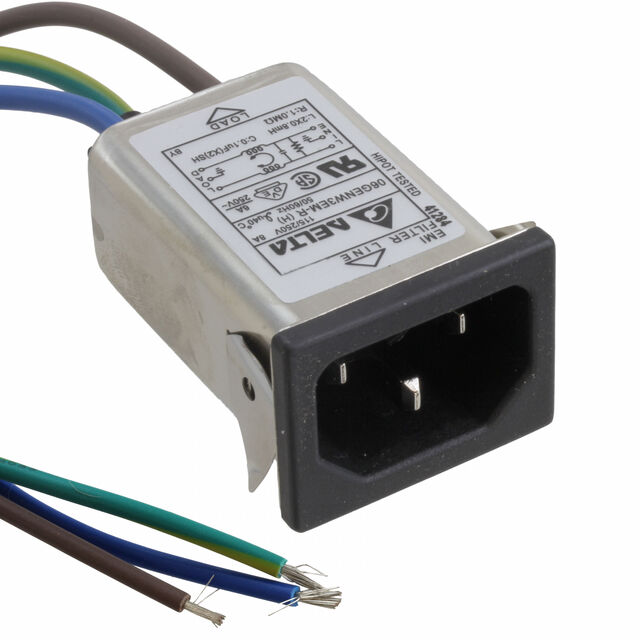

Delta Electronics 06GENW3EM-R(H)	6 A	115 VAC	250 VAC	0.032 in	1.6 mm	0.063 "	0.81 mm	Bleed Resistor Mounting Clip	6 A	CSA UL VDE	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	21.5 mm	29.5 mm	Wire Leads	Receptacle Male Blades	IEC 320-C14

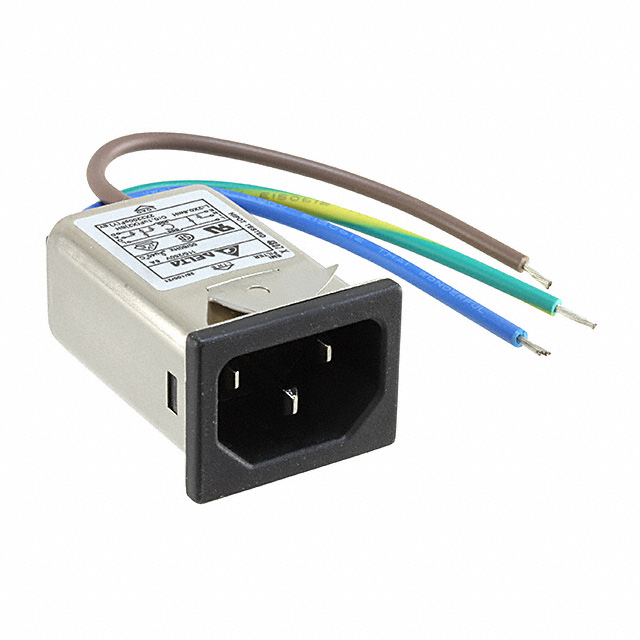

Delta Electronics 06GENW3E	6 A	115 VAC	250 VAC	0.032 in	1.6 mm	0.063 "	0.81 mm		6 A	CSA UL VDE	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial	21.9 mm	28.45 mm	Wire Leads	Receptacle Male Blades	IEC 320-C14

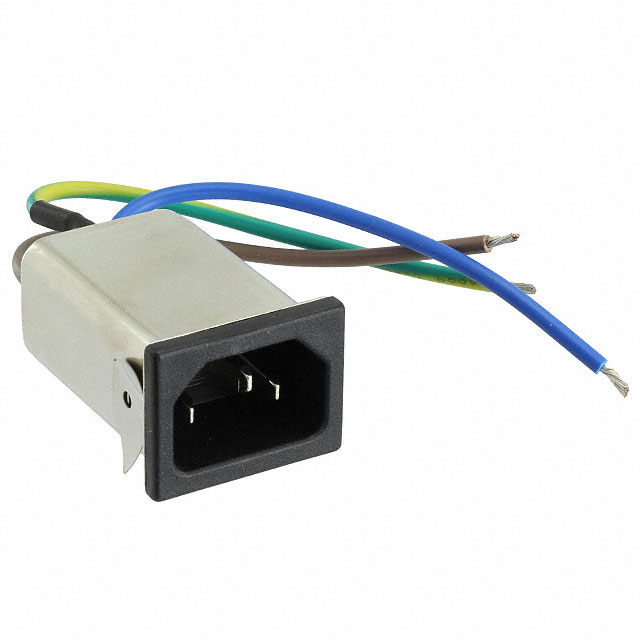

Delta Electronics 06GENW3QM-R(H)	6 A	115 VAC	250 VAC	0.032 in	1.6 mm	0.063 "	0.81 mm	Bleed Resistor Mounting Clip	6 A	CSA UL VDE	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	21.5 mm	29.5 mm	Wire Leads	Receptacle Male Blades	IEC 320-C14

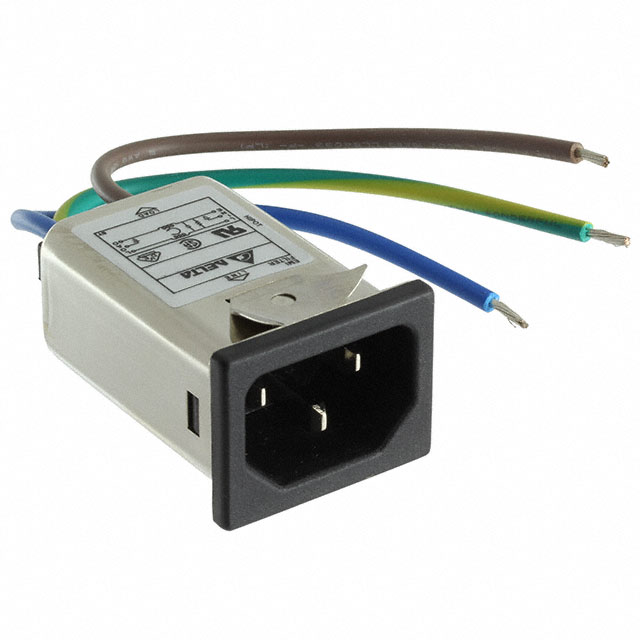

Delta Electronics 06GENW3EM-R	6 A	115 VAC	250 VAC	0.032 in	1.6 mm	0.063 "	0.81 mm	Bleed Resistor	6 A	CSA UL VDE	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	21.9 mm	28.45 mm	Wire Leads	Receptacle Male Blades	IEC 320-C14

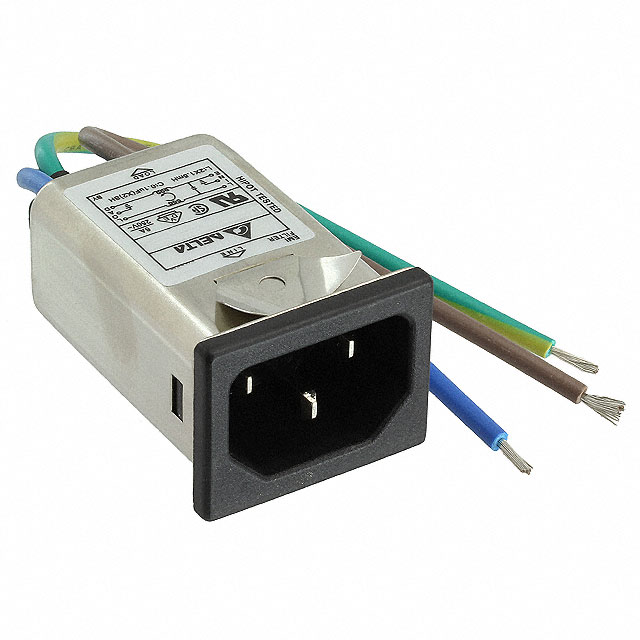

Delta Electronics 06GENW3QM	6 A	115 VAC	250 VAC	0.032 in	1.6 mm	0.063 "	0.81 mm		6 A	CSA UL VDE	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial Medical	21.9 mm	28.45 mm	Wire Leads	Receptacle Male Blades	IEC 320-C14
