9808 Series
Manufacturer: Belden Inc.
Beta
⌘K

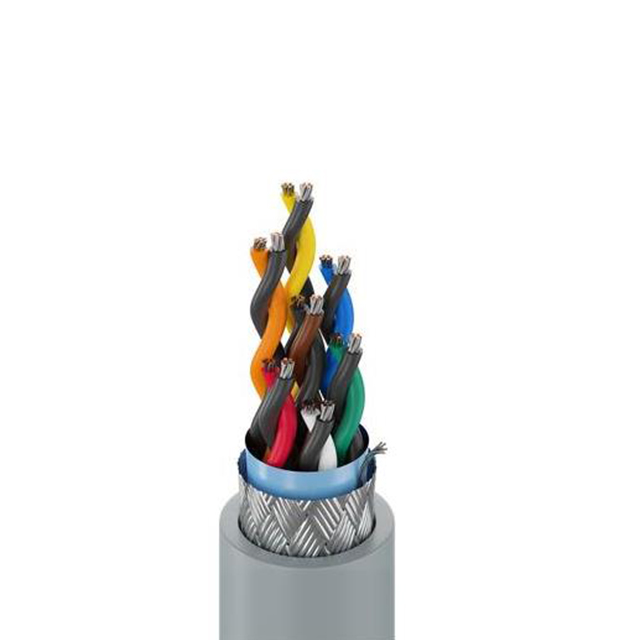

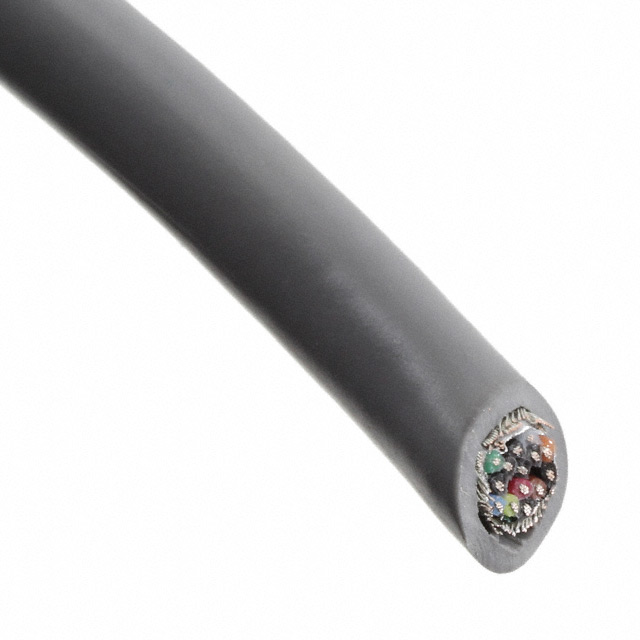

MULTI-PAIR 14COND 28AWG
| Part | Shield Material | Shield Coverage | Features | Cable Type | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Length [x] | Length [x] | Ratings | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors [custom] | Number of Conductors [custom] | Length | Length | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Drain Wire | Multi-Pair | Polypropylene (PP) | 0.256 in | 6.5 mm | 28 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | UL Style 2960 | Chrome | -30 ░C | 60 °C | Braid Foil | Computer | 0.035 in | 0.889 mm | 7 | 36 AWG | 14 | 7 pair | |||
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Drain Wire | Multi-Pair | Polypropylene (PP) | 0.256 in | 6.5 mm | 28 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | UL Style 2960 | Chrome | -30 ░C | 60 °C | Braid Foil | Computer | 0.035 in | 0.889 mm | 7 | 36 AWG | 304.8 m | 1000 ft | 14 | ||||
Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Drain Wire | Multi-Pair | Polypropylene (PP) | 0.256 in | 6.5 mm | 28 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | UL Style 2960 | Chrome | -30 ░C | 60 °C | Braid Foil | Computer | 0.035 in | 0.889 mm | 7 | 36 AWG | 152.4 m | 500 ft | 14 |
