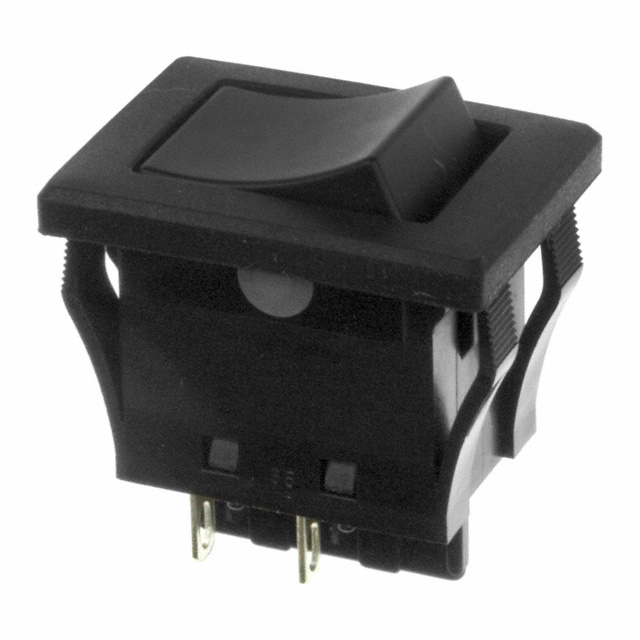

JWMW11 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPST 10A 125V
| Part | Electrical Life | Mechanical Life | Termination Style | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Voltage Rating - AC | Actuator Marking | Circuit | Ingress Protection | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Color - Actuator/Cap | Mounting Type | Switch Function | Approval Agency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | Wire Leads | 30 V | 85 °C | -25 °C | 10 A | 125 V | O - | SPST | Dust Proof | Concave (Curved) | 15.4 mm | 25 mm | Black | Panel Mount Snap-In | On-Off | CSA UL VDE | |
 NKK Switches | 25000 Steps | 25000 Steps | Solder Quick Connect - 0.110" (2.8mm) | 30 V | 85 °C | -25 °C | 10 A | 125 V | O - | SPST | IP67 - Dust Tight Waterproof | Concave (Curved) | 15.4 mm | 25 mm | Black | Panel Mount Snap-In | On-Off | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Solder Quick Connect - 0.110" (2.8mm) | 30 V | 85 °C | -25 °C | 10 A | 125 V | No Marking | SPST | IP67 - Dust Tight Waterproof | Concave (Curved) | 15.4 mm | 25 mm | Black | Panel Mount Snap-In | On-Off | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Solder Quick Connect - 0.110" (2.8mm) | 30 V | 85 °C | -25 °C | 10 A | 125 V | O - | SPST | IP67 - Dust Tight Waterproof | Concave (Curved) | 15.4 mm | 25 mm | Black | Panel Mount Snap-In | On-Off | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Solder Quick Connect - 0.110" (2.8mm) | 30 V | 85 °C | -25 °C | 10 A | 125 V | O I | SPST | IP67 - Dust Tight Waterproof | Concave (Curved) | 15.4 mm | 25 mm | Red | Panel Mount Snap-In | On-Off | CSA UL VDE | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | Solder Quick Connect - 0.110" (2.8mm) | 30 V | 85 °C | -25 °C | 10 A | 125 V | No Marking | SPST | IP67 - Dust Tight Waterproof | Concave (Curved) | 15.4 mm | 25 mm | Black | Panel Mount Snap-In | On-Off | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Solder Quick Connect - 0.110" (2.8mm) | 30 V | 85 °C | -25 °C | 10 A | 125 V | O I | SPST | IP67 - Dust Tight Waterproof | Concave (Curved) | 15.4 mm | 25 mm | Black | Panel Mount Snap-In | On-Off | CSA UL VDE | Epoxy Sealed Terminals |
