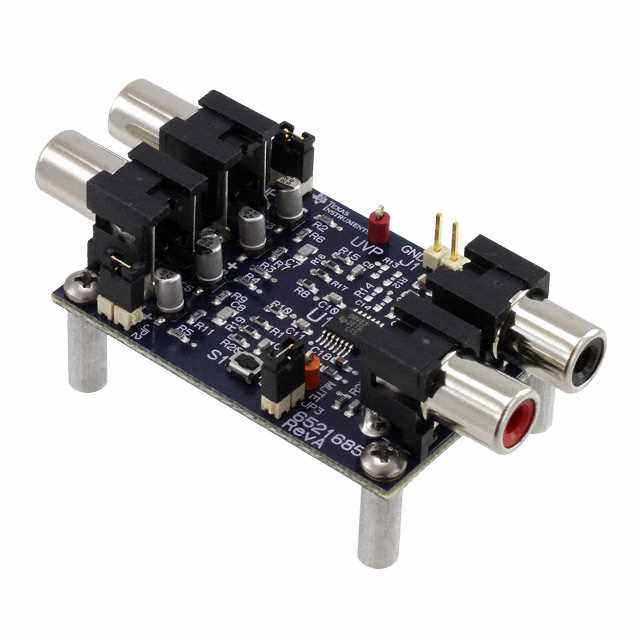

2-VRMS DirectPath™ line driver with adjustable gain
Key Features
• Stereo DirectPath™ Audio Line Driver2 Vrms Into 10 kΩ With 3.3-V SupplyLow THD+N < 0.01% at 2 Vrms Into 10 kΩHigh SNR, >90 dB600-Ω Output Load CompliantDifferential Input and Single-Ended OutputAdjustable Gain by External Gain-Setting ResistorsLow DC Offset, <1 mVGround-Referenced Outputs Eliminate DC-Blocking CapacitorsReduce Board AreaReduce Component CostImprove THD+N PerformanceNo Degradation of Low-Frequency Response Due to Output CapacitorsShort-Circuit ProtectionClick- and Pop-Reduction CircuitryExternal Undervoltage MuteActive Mute Control for Pop-Free Audio On/Off ControlSpace-Saving TSSOP PackageStereo DirectPath™ Audio Line Driver2 Vrms Into 10 kΩ With 3.3-V SupplyLow THD+N < 0.01% at 2 Vrms Into 10 kΩHigh SNR, >90 dB600-Ω Output Load CompliantDifferential Input and Single-Ended OutputAdjustable Gain by External Gain-Setting ResistorsLow DC Offset, <1 mVGround-Referenced Outputs Eliminate DC-Blocking CapacitorsReduce Board AreaReduce Component CostImprove THD+N PerformanceNo Degradation of Low-Frequency Response Due to Output CapacitorsShort-Circuit ProtectionClick- and Pop-Reduction CircuitryExternal Undervoltage MuteActive Mute Control for Pop-Free Audio On/Off ControlSpace-Saving TSSOP Package
Description
AI
The DRV632 is a 2-VRMSpop-free stereo line driver designed to allow the removal of the output dc-blocking capacitors for reduced component count and cost. The device is ideal for single-supply electronics where size and cost are critical design parameters.
Designed using TI’s patented DirectPath™ technology, The DRV632 is capable of driving 2 VRMSinto a 10-kΩ load with 3.3-V supply voltage. The device has differential inputs and uses external gain-setting resistors to support a gain range of ±1 V/V to ±10 V/V, and gain can be configured individually for each channel. Line outputs have ±8-kV IEC ESD protection, requiring just a simple resistor-capacitor ESD protection circuit. The DRV632 has built-in active-mute control for pop-free audio on/off control. The DRV632 has an external undervoltage detector that mutes the output when the power supply is removed, ensuring a pop-free shutdown.
Using the DRV632 in audio products can reduce component count considerably compared to traditional methods of generating a 2-VRMSoutput. The DRV632 does not require a power supply greater than 3.3 V to generate its 5.6-Vppoutput, nor does it require a split-rail power supply. The DRV632 integrates its own charge pump to generate a negative supply rail that provides a clean, pop-free ground-biased 2-VRMSoutput.
The DRV632 is available in a 14-pin TSSOP.
