DRV201A Series

100mA Voice Coil Motor Lens Driver with Ringing Compensation for Camera Autofocus

Catalog

100mA Voice Coil Motor Lens Driver with Ringing Compensation for Camera Autofocus

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Mounting Type	Technology	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Load [Min]	Voltage - Load [Max]	Function	Package / Case	Applications	Motor Type - AC, DC	Secondary Attributes	Primary Attributes	Utilized IC / Part	Type	Supplied Contents
Texas Instruments DRV201YFMR	2.5 V	4.8 V	I2C	Surface Mount	NMOS PMOS	102.3 mA	-40 °C	125 ¯C	6-DSLGA	2.5 V	4.8 V	Driver - Fully Integrated Control and Power Stage	6-XFLGA DSLGA	Camera	Voice Coil Motor
Texas Instruments DRV201AYMBR	2.5 V	4.8 V	I2C	Surface Mount	NMOS PMOS	102.3 mA	-40 °C	125 ¯C	6-PicoStar (0.8x1.48)	2.5 V	4.8 V	Driver - Fully Integrated Control and Power Stage	6-XFBGA	Camera	Voice Coil Motor
Texas Instruments DRV201YMBR	2.5 V	4.8 V	I2C	Surface Mount	NMOS PMOS	102.3 mA	-40 °C	125 ¯C	6-PicoStar (0.8x1.48)	2.5 V	4.8 V	Driver - Fully Integrated Control and Power Stage	6-XFBGA	Camera	Voice Coil Motor

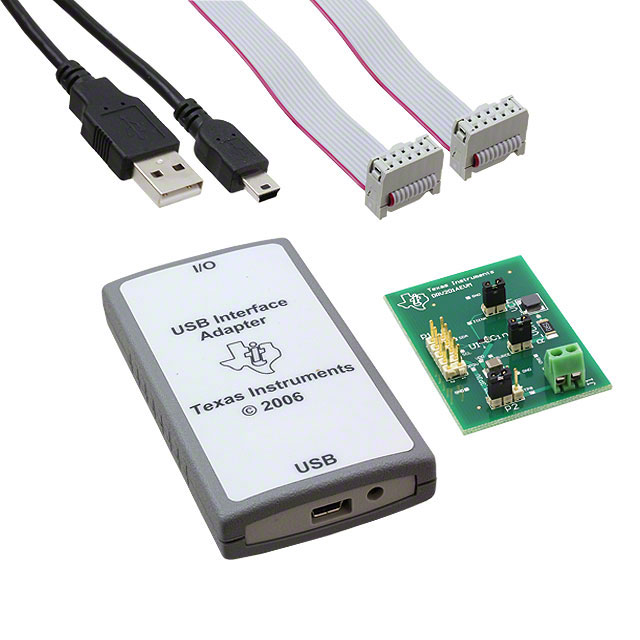

Texas Instruments DRV201AEVM												Motor Controller/Driver				Graphical User Interface (GUI) I2C Interface(s)	Voice Coil Motor Driver for Camera Auto Focus	DRV201A	Power Management	Board(s)
Texas Instruments DRV201YFMT	2.5 V	4.8 V	I2C	Surface Mount	NMOS PMOS	102.3 mA	-40 °C	125 ¯C	6-DSLGA	2.5 V	4.8 V	Driver - Fully Integrated Control and Power Stage	6-XFLGA DSLGA	Camera	Voice Coil Motor

Catalog

100mA Voice Coil Motor Lens Driver with Ringing Compensation for Camera Autofocus

Key Features

• Configurable for Linear or PWM Mode VCMCurrent GenerationHigh Efficiency PWM Current Control for VCMAdvanced Ringing CompensationIntegrated 10-bit D/A Converter for VCM CurrentControlProtectionOpen and Short-Circuit DetectionUndervoltage Lockout (UVLO)Thermal ShutdownInternal Current Limit for VCM Driver4-kV ESD-HBMI2C InterfaceImproved PWM-to-Linear Mode Setting Time vs.DRV201Improved EMC Performance vs. DRV201Improved PWM-to-Linear Mode Settling Time vs.DRV201Improved EMC Performance vs. DRV201Operating Temperature Range: –40°C to 85°C6-Ball WCSP Package With 0.4-mm PitchMax Die Size: 0.806 mm × 1.49 mmMax Package Height: 0.3 mmConfigurable for Linear or PWM Mode VCMCurrent GenerationHigh Efficiency PWM Current Control for VCMAdvanced Ringing CompensationIntegrated 10-bit D/A Converter for VCM CurrentControlProtectionOpen and Short-Circuit DetectionUndervoltage Lockout (UVLO)Thermal ShutdownInternal Current Limit for VCM Driver4-kV ESD-HBMI2C InterfaceImproved PWM-to-Linear Mode Setting Time vs.DRV201Improved EMC Performance vs. DRV201Improved PWM-to-Linear Mode Settling Time vs.DRV201Improved EMC Performance vs. DRV201Operating Temperature Range: –40°C to 85°C6-Ball WCSP Package With 0.4-mm PitchMax Die Size: 0.806 mm × 1.49 mmMax Package Height: 0.3 mm

Description

The DRV201A is an advanced voice coil motor driver for camera auto focus. It has an integrated D/A converter for setting the VCM current. VCM current is controlled with a fixed frequency PWM controller or a linear mode driver. Current generation can be selected via I2C register. The DRV201A has an integrated sense resistor for current regulation and the current can be controlled through I2C. When changing the current in the VCM, the lens ringing is compensated with an advanced ringing compensation function. Ringing compensation reduces the needed time for auto focus significantly. The device also has VCM short and open protection functions. The DRV201A is an advanced voice coil motor driver for camera auto focus. It has an integrated D/A converter for setting the VCM current. VCM current is controlled with a fixed frequency PWM controller or a linear mode driver. Current generation can be selected via I2C register. The DRV201A has an integrated sense resistor for current regulation and the current can be controlled through I2C. When changing the current in the VCM, the lens ringing is compensated with an advanced ringing compensation function. Ringing compensation reduces the needed time for auto focus significantly. The device also has VCM short and open protection functions.
