892-062 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Contact Type	Gender	Number of Positions/Bay/Row [custom]	Card Type	Read Out	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Termination	Color	Contact Material	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Features

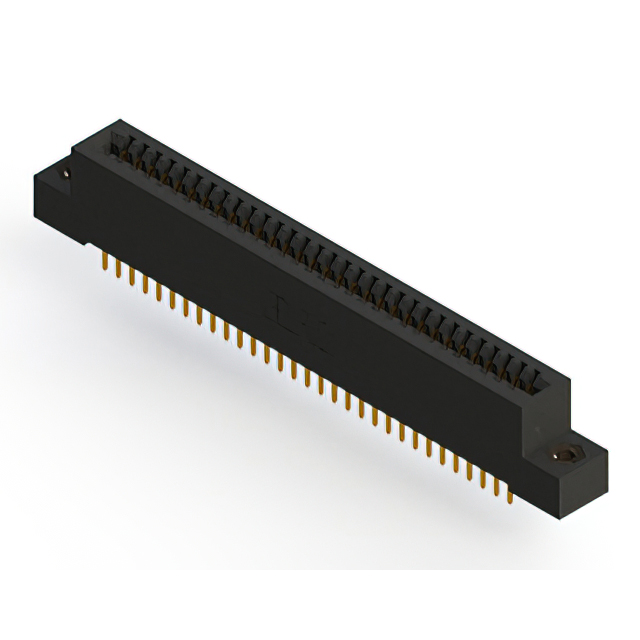

EDAC Inc. 892-062-521-207	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Solder	Black	Copper Alloy	62
EDAC Inc. 892-062-520-204	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Through Hole	Solder	Black	Copper Alloy	62	0.156 "	3.96 mm
EDAC Inc. 892-062-500-201	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin		Through Hole	Solder Eyelet(s)	Black	Copper Alloy	62

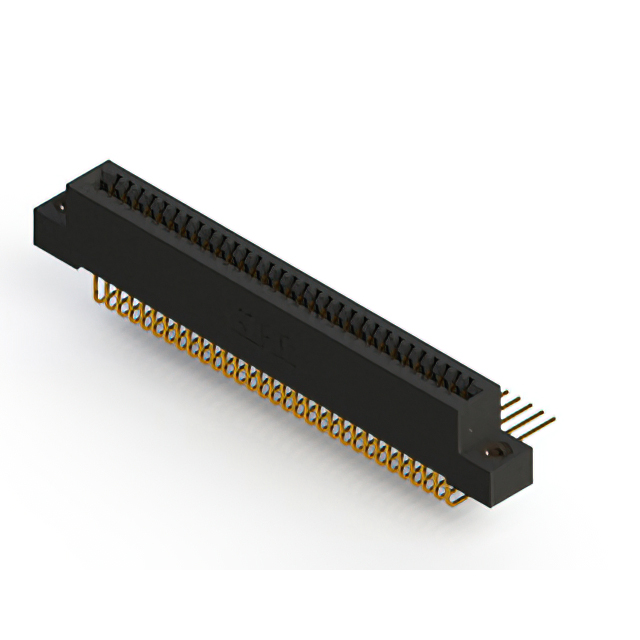

EDAC Inc. 892-062-558-208	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Right Angle Through Hole	Solder	Black	Copper Alloy	62

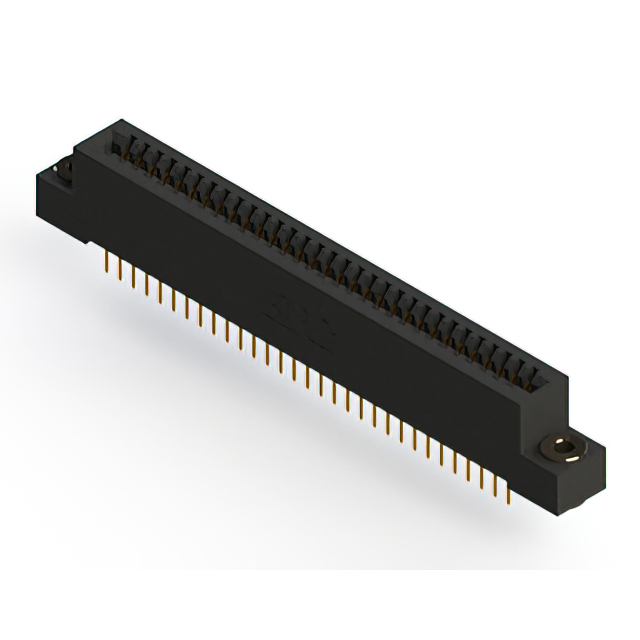

EDAC Inc. 892-062-524-203	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	Through Hole	Solder	Black	Copper Alloy	62	0.116 "	2.95 mm

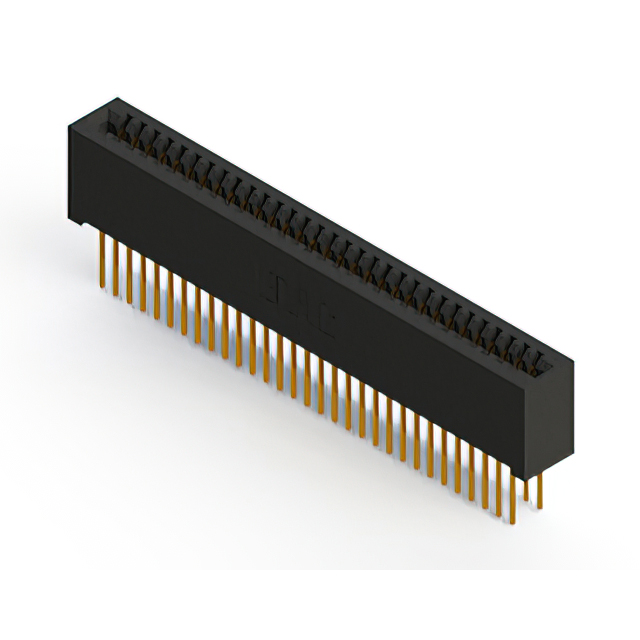

EDAC Inc. 892-062-523-201	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin		Through Hole	Solder	Black	Copper Alloy	62
EDAC Inc. 892-062-520-201	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin		Through Hole	Solder	Black	Copper Alloy	62
EDAC Inc. 892-062-500-212	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	Through Hole	Solder Eyelet(s)	Black	Copper Alloy	62	0.128 "	3.25 mm
EDAC Inc. 892-062-523-203	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	Through Hole	Solder	Black	Copper Alloy	62	0.116 "	2.95 mm

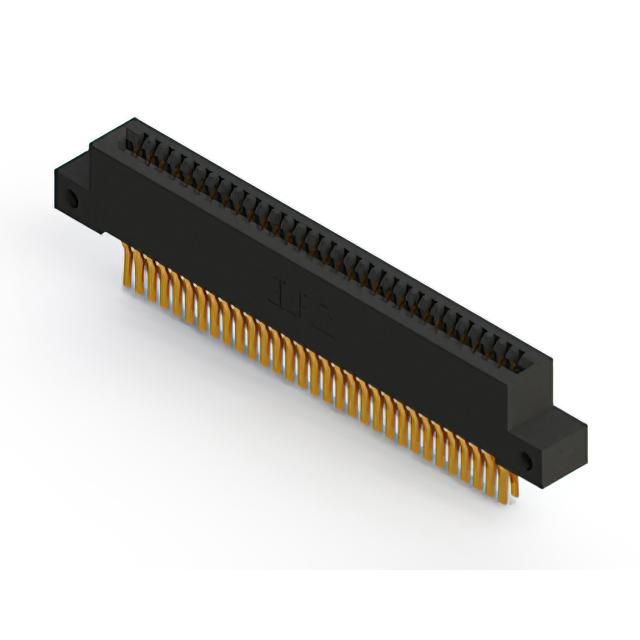

EDAC Inc. 892-062-560-212	Polyphenylene Sulfide (PPS)	2	2	Cantilever	Female	31	Non Specified - Dual Edge	Dual	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Gold	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	Board Edge Straddle Mount	Solder	Black	Copper Alloy	62	0.128 "	3.25 mm	Card Extender
