5403FE Series
Manufacturer: Belden Inc.
Beta
⌘K

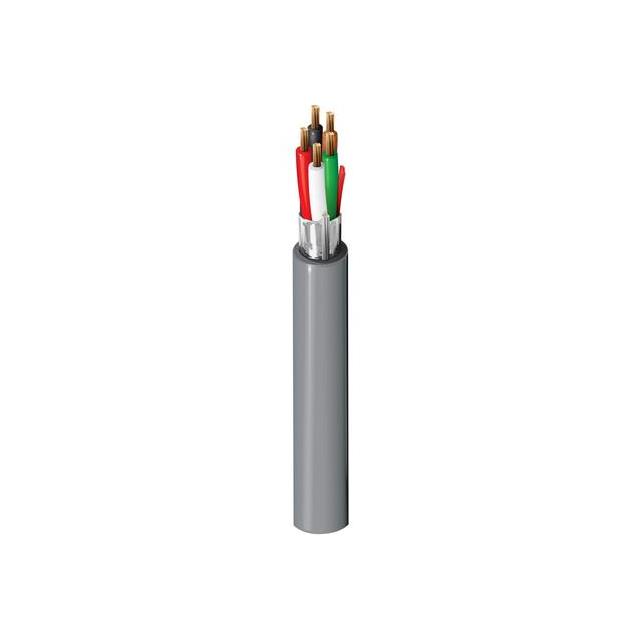

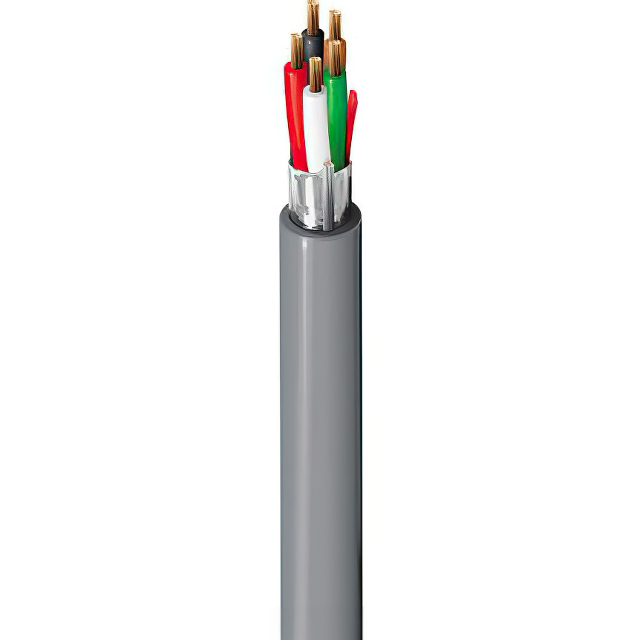

CABLE 5CON 20AWG GRAY SHLD
| Part | Shield Coverage | Shield Material | Wire Gauge | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Usage | Conductor Material | Shield Type | Conductor Insulation | Ratings | Jacket Color | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Length | Length | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 20 AWG | Multi-Conductor | 28 AWG | 7 | 300 VDC | Alarm Security Sound | Copper Bare | Foil | Polypropylene (PP) | UL Style CMR | Gray | 5 | 0.017 " | 0.432 mm | Rip Cord | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) Riser |
 Belden Inc. | 100 % | Aluminum | 20 AWG | Multi-Conductor | 28 AWG | 7 | 300 VDC | Alarm Security Sound | Copper Bare | Foil | Polypropylene (PP) | UL Style CMR | Gray | 5 | 0.017 " | 0.432 mm | Rip Cord | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) Riser |
