917895 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

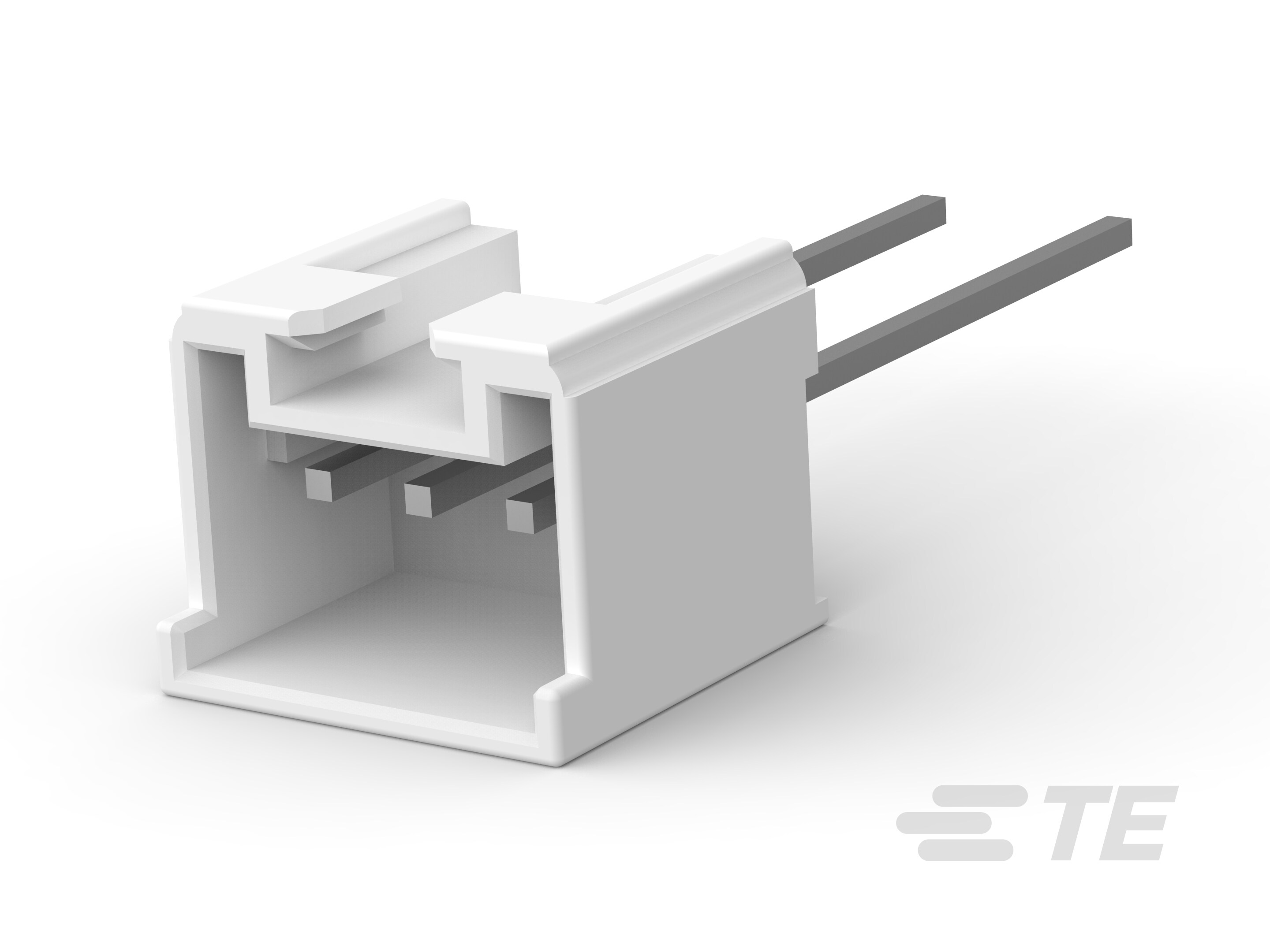

2.5 S.D.L STD V 3P HDR ON/TAPE
| Part | Applications | Mated Stacking Heights | Number of Rows | Connector Type | Insulation Material | Overall Contact Length | Overall Contact Length | Termination | Insulation Height | Insulation Height | Contact Finish - Post | Style | Shrouding | Number of Positions Loaded | Contact Shape | Current Rating (Amps) | Features | Mounting Type | Contact Type | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Voltage Rating | Fastening Type | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 13.7 mm | 1 | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.41 in | 10.41 mm | Kinked Pin Solder | 9.8 mm | 0.386 in | Tin | Board to Cable/Wire | Shrouded - 4 Wall | All | Square | 3 A | Board Guide | Through Hole | Male Pin | 4.7 mm | 0.185 in | 2.5 mm | 0.098 in | 50 V | Latch Holder | UL94 V-0 | Copper Alloy | -30 ░C | 105 ░C | 0.126 " | 3.2 mm | Red |
