ISO7821LLS Series

Dual-channel, 1/1, 150-Mbps, high-performance, reinforced isolated LVDS buffer

Catalog

Dual-channel, 1/1, 150-Mbps, high-performance, reinforced isolated LVDS buffer

Part	Data Rate	Voltage - Isolation	Pulse Width Distortion (Max)	Mounting Type	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Package / Case [x]	Package / Case	Package / Case [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels [custom]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Channel Type	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Technology	Inputs - Side 1/Side 2	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Pulse Width Distortion (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Function	Primary Attributes	Utilized IC / Part	Supplied Contents
Texas Instruments ISO7821FDW	100 Mbps	5700 Vrms	4.6 ns	Surface Mount	16-SOIC	100 V/ns	0.295 in	16-SOIC	7.5 mm	5.5 V	2.25 V	2	General Purpose	-55 °C	125 °C	Unidirectional	16 ns	16 ns	Capacitive Coupling	1/1	2.4 ns	2.4 ns
Texas Instruments ISO7821LLDW	100 Mbps	5700 Vrms		Surface Mount	16-SOIC	100 V/ns	0.295 in	16-SOIC	7.5 mm	5.5 V	2.25 V	2	General Purpose	-55 °C	125 °C	Unidirectional	25 ns	25 ns	Capacitive Coupling	1/1			4.5 ns
Texas Instruments ISO7821FDWWR	100 Mbps	5700 Vrms	4.6 ns	Surface Mount	16-SOIC	100 V/ns		16-SOIC		5.5 V	2.25 V	2	General Purpose	-55 °C	125 °C	Unidirectional	16 ns	16 ns	Capacitive Coupling	1/1	2.4 ns	2.4 ns
Texas Instruments ISO7821DWW	100 Mbps	5700 Vrms	4.6 ns	Surface Mount	16-SOIC	100 V/ns		16-SOIC		5.5 V	2.25 V	2	General Purpose	-55 °C	125 °C	Unidirectional	16 ns	16 ns	Capacitive Coupling	1/1	2.4 ns	2.4 ns
Texas Instruments ISO7821LLSDWWR	150 Mbps	5700 Vrms		Surface Mount	16-SOIC	100 V/ns		16-SOIC		5.5 V	3 V	2	General Purpose	-55 °C	125 °C	Unidirectional	25 ns	25 ns	Capacitive Coupling	1/1
Texas Instruments ISO7821LLDWW	100 Mbps	5700 Vrms		Surface Mount	16-SOIC	100 V/ns		16-SOIC		5.5 V	2.25 V	2	General Purpose	-55 °C	125 °C	Unidirectional	25 ns	25 ns	Capacitive Coupling	1/1			4.5 ns
Texas Instruments ISO7821LLDWR	100 Mbps	5700 Vrms		Surface Mount	16-SOIC	100 V/ns	0.295 in	16-SOIC	7.5 mm	5.5 V	2.25 V	2	General Purpose	-55 °C	125 °C	Unidirectional	25 ns	25 ns	Capacitive Coupling	1/1			4.5 ns
Texas Instruments ISO7821LLSDWW	100 Mbps	5700 Vrms		Surface Mount	16-SOIC	100 V/ns		16-SOIC		5.5 V	2.25 V	2	LVDS	-55 °C	125 °C	Unidirectional	25 ns	25 ns	Capacitive Coupling	1/1			4.5 ns	1.38 ns	1.38 ns

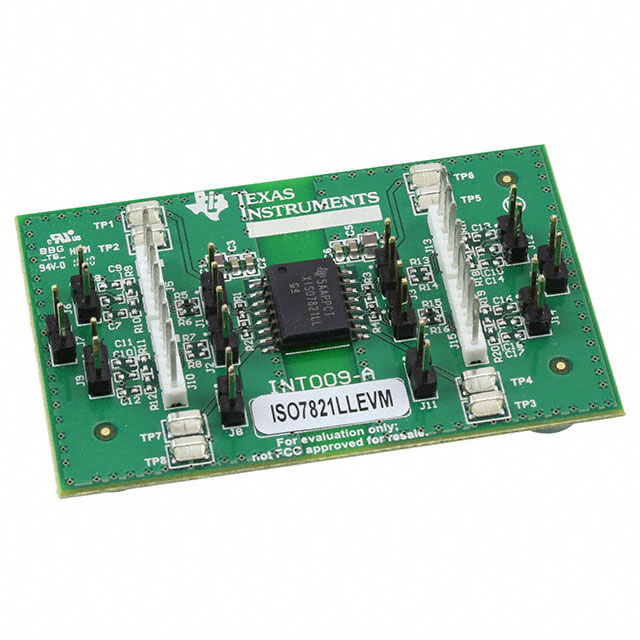

Texas Instruments ISO7821LLEVM													Interface													Digital Isolator	2-Channel (Dual)	ISO7821LL	Board(s)
Texas Instruments ISO7821LLSDW	150 Mbps	5700 Vrms		Surface Mount	16-SOIC	100 V/ns	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	2	General Purpose	-55 °C	125 °C	Unidirectional	25 ns	25 ns	Capacitive Coupling	1/1

Catalog

Dual-channel, 1/1, 150-Mbps, high-performance, reinforced isolated LVDS buffer

Key Features

• Complies with TIA/EIA-644-A LVDS StandardSignaling Rate: 50 Mbps to 150 MbpsOptimized for DC-Balanced DataWide Supply Range: 3 V to 5.5 VWide Temperature Range: –55°C to 125°CLow-Power Consumption, Typical 10.3 mA per Channel at 150 MbpsLow Propagation Delay: 17 ns TypicalIndustry leading CMTI(Min): ±100 kV/μsRobust Electromagnetic Compatibility (EMC)System-Level ESD, EFT, and Surge ImmunityLow EmissionsIsolation Barrier Life: > 40 YearsSOIC-16 Wide Body (DW) and Extra-Wide Body (DWW) Package OptionsIsolation Surge Withstand Voltage 12800 VPKSafety-Related Certifications:8000-VPKReinforced Isolation per DIN V VDE V 0884–10 (VDE V 0884–10): 2006–125700-VRMSIsolation for 1 minute per UL 1577CSA Component Acceptance Notice 5A, IEC 60950–1 and IEC 60601–1 End Equipment StandardsTUV Certification per EN 61010-1 and EN 60950-1CQC Certification per GB4943.1–2011All Certifications are PlannedAll trademarks are the property of their respective owners.Complies with TIA/EIA-644-A LVDS StandardSignaling Rate: 50 Mbps to 150 MbpsOptimized for DC-Balanced DataWide Supply Range: 3 V to 5.5 VWide Temperature Range: –55°C to 125°CLow-Power Consumption, Typical 10.3 mA per Channel at 150 MbpsLow Propagation Delay: 17 ns TypicalIndustry leading CMTI(Min): ±100 kV/μsRobust Electromagnetic Compatibility (EMC)System-Level ESD, EFT, and Surge ImmunityLow EmissionsIsolation Barrier Life: > 40 YearsSOIC-16 Wide Body (DW) and Extra-Wide Body (DWW) Package OptionsIsolation Surge Withstand Voltage 12800 VPKSafety-Related Certifications:8000-VPKReinforced Isolation per DIN V VDE V 0884–10 (VDE V 0884–10): 2006–125700-VRMSIsolation for 1 minute per UL 1577CSA Component Acceptance Notice 5A, IEC 60950–1 and IEC 60601–1 End Equipment StandardsTUV Certification per EN 61010-1 and EN 60950-1CQC Certification per GB4943.1–2011All Certifications are PlannedAll trademarks are the property of their respective owners.

Description

The ISO7821LLS device is a high-performance, isolated dual-LVDS buffer with 8000-VPKisolation voltage. This device provides high electromagnetic immunity and low emissions at low-power consumption, while isolating the LVDS bus signal. Each isolation channel has an LVDS receive and transmit buffer. Timing performance for the ISO7821LLS device is optimized for use with communication systems that use DC-balanced data streams which is achieved through an internal distortion correction scheme. The ISO7821LLS device has one forward and one reverse-direction channel. Through innovative chip design and layout techniques, the electromagnetic compatibility of the ISO7821LLS device has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO7821LLS device is available in a 16-pin SOIC wide-body (DW) and extra-wide body (DWW) packages. The ISO7821LLS device is a high-performance, isolated dual-LVDS buffer with 8000-VPKisolation voltage. This device provides high electromagnetic immunity and low emissions at low-power consumption, while isolating the LVDS bus signal. Each isolation channel has an LVDS receive and transmit buffer. Timing performance for the ISO7821LLS device is optimized for use with communication systems that use DC-balanced data streams which is achieved through an internal distortion correction scheme. The ISO7821LLS device has one forward and one reverse-direction channel. Through innovative chip design and layout techniques, the electromagnetic compatibility of the ISO7821LLS device has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO7821LLS device is available in a 16-pin SOIC wide-body (DW) and extra-wide body (DWW) packages.
