LPT12 Series

Catalog

EC FAN AXIAL 120X120X38MM 100-24

Part	Material - Blade	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Fan Type	Static Pressure	Static Pressure	Approval Agency	Features	Power (Watts)	Termination	RPM	Voltage - Rated [Max]	Voltage - Rated [Min]	Ingress Protection	Air Flow	Air Flow	Weight	Weight	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Noise	Termination

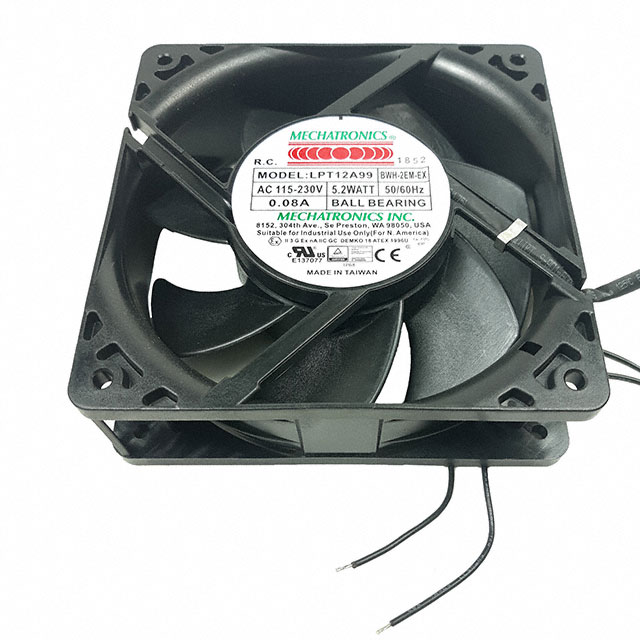

Mechatronics Fan Group LPT12A99-BWHR-2EM-EX	Plastic	Plastic	265 VAC	90 VAC	Ball	Tubeaxial	84.7 Pa	0.34 in H2O	ATEX	Auto Restart Electronic Commutation (EC)	4.9 W	2 Wire Leads	3200 RPM	230 VAC	115 VAC	IP68 - Dust Tight Waterproof	106 CFM	2.97 m³/min	0.644 lb	292.11 g	38 mm	120 mm	120 mm	43 dB

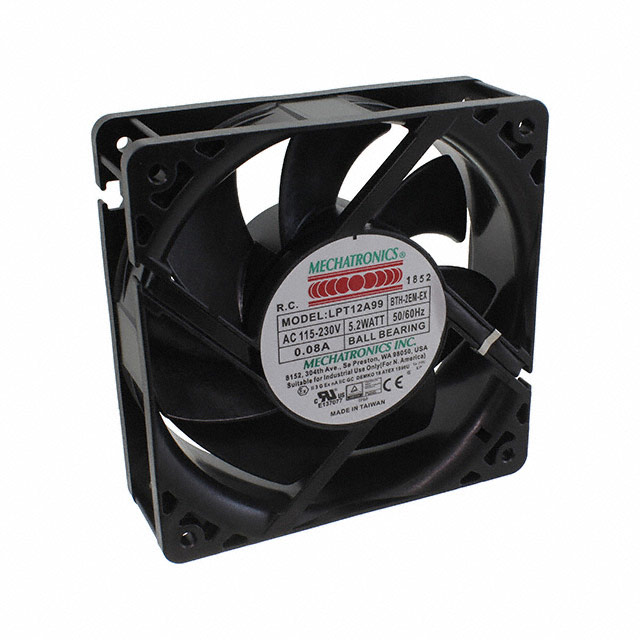

Mechatronics Fan Group LPT12A99-BTHR-2EM-EX	Plastic	Plastic	265 VAC	90 VAC	Ball	Tubeaxial	84.7 Pa	0.34 in H2O	ATEX	Auto Restart Electronic Commutation (EC)	4.9 W		3200 RPM	230 VAC	115 VAC	IP68 - Dust Tight Waterproof	106 CFM	2.97 m³/min	0.644 lb	292.11 g	38 mm	120 mm	120 mm	43 dB	2

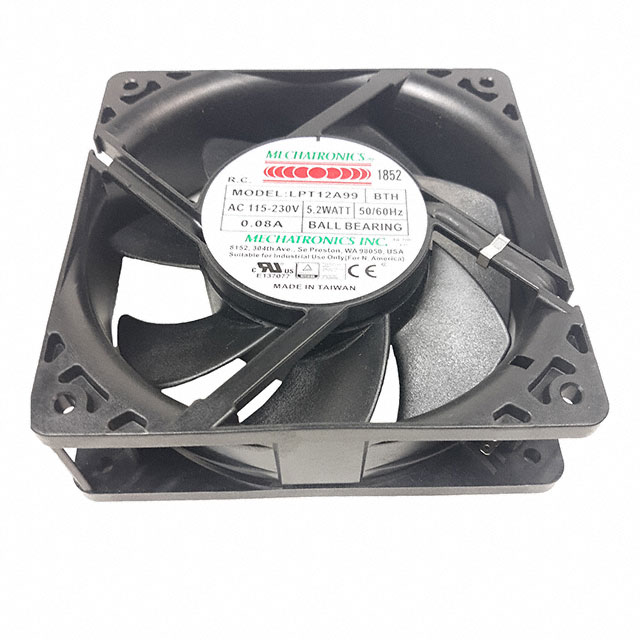

Mechatronics Fan Group LPT12A99-BTHR	Plastic	Plastic	265 VAC	90 VAC	Ball	Tubeaxial	84.7 Pa	0.34 in H2O		Auto Restart Electronic Commutation (EC)	4.9 W		3200 RPM	230 VAC	115 VAC		106 CFM	2.97 m³/min	0.644 lb	292.11 g	38 mm	120 mm	120 mm	43 dB	2

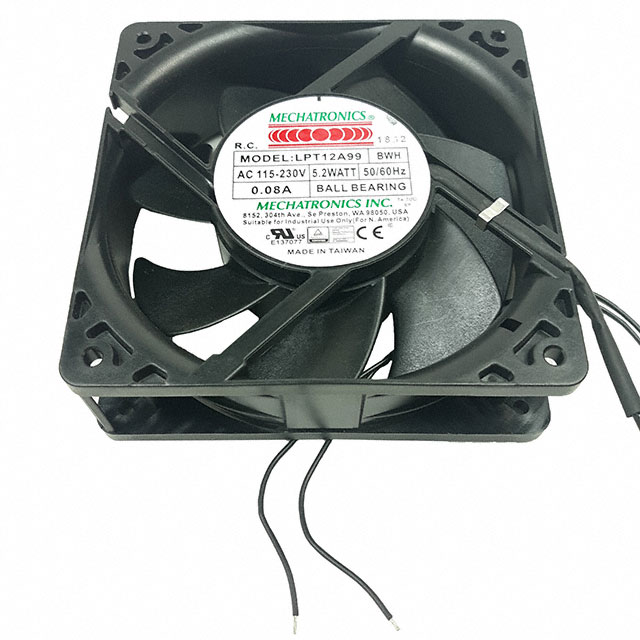

Mechatronics Fan Group LPT12A99-BWHR	Plastic	Plastic	265 VAC	90 VAC	Ball	Tubeaxial	84.7 Pa	0.34 in H2O		Auto Restart Electronic Commutation (EC)	4.9 W	2 Wire Leads	3200 RPM	230 VAC	115 VAC		106 CFM	2.97 m³/min	0.644 lb	292.11 g	38 mm	120 mm	120 mm	43 dB
