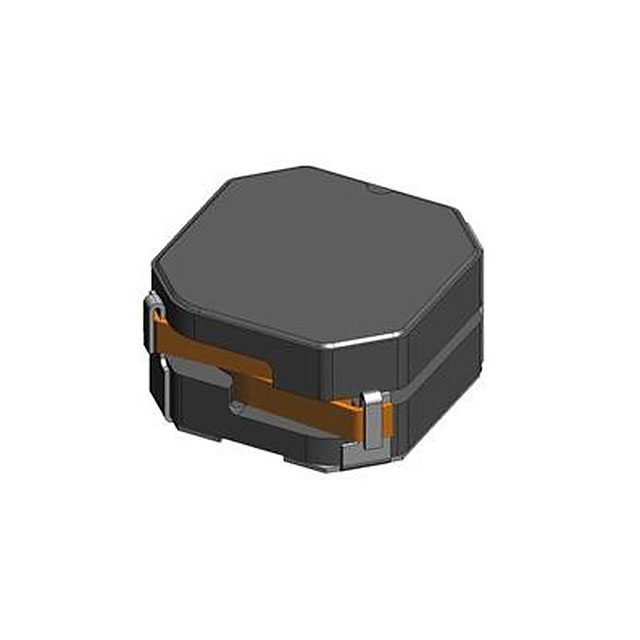

DD1274AS Series

Catalog

FIXED IND 3.3UH 7.4A 11.4MOHM SM

Part	DC Resistance (DCR) [Max]	Type	Shielding	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Current Rating (Amps)	Inductance Frequency - Test	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Tolerance	Inductance	Ratings
Murata Electronics DD1274AS-H-3R3N=P3	11.4 mOhm	Drum Core Wirewound	Shielded	14.4 A	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	7.4 A	100 kHz	Ferrite	0.197 in	5 mm	Surface Mount	30 %	3.3 µH	AEC-Q200
Murata Electronics DD1274AS-H-1R5N=P3	7.7 mOhm	Drum Core Wirewound	Shielded	20.4 A	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	8.9 A	100 kHz	Ferrite	0.197 in	5 mm	Surface Mount	30 %	1.5 µH	AEC-Q200
Murata Electronics DD1274AS-H-8R2M=P3	26.4 mOhm	Drum Core Wirewound	Shielded	9.1 A	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	4.8 A	100 kHz	Ferrite	0.197 in	5 mm	Surface Mount	20 %	8.2 µH	AEC-Q200
Murata Electronics DD1274AS-H-5R6N=P3	18.3 mOhm	Drum Core Wirewound	Shielded	11.1 A	0.394 in	0.394 in	10 mm	10 mm	Nonstandard	6.3 A	100 kHz	Ferrite	0.197 in	5 mm	Surface Mount	30 %	5.6 µH	AEC-Q200
