470025YY Series

Catalog

MULTI-CONDUCTOR CABLES PRO-MET

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length	Conductor Strand [diameter]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Cable Type	Length [x]	Length [x]	Conductor Material	Features	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Usage	Spool Size	Spool Size	Wire Gauge	Conductor Insulation

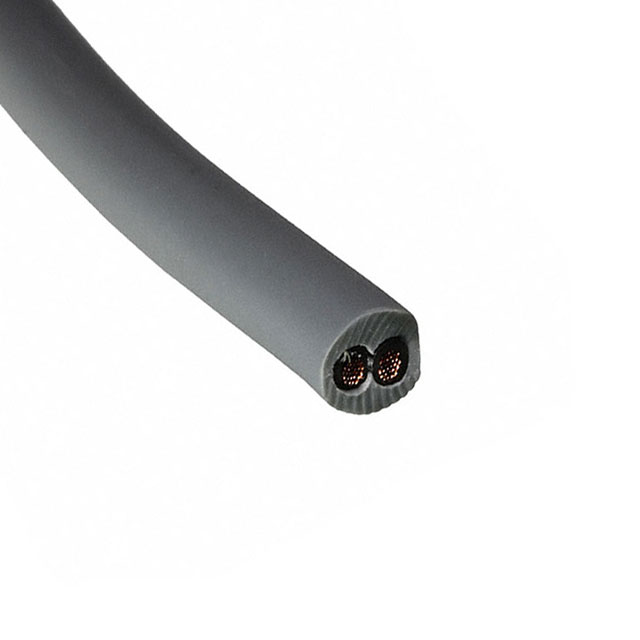

ALPHA WIRE 470025YY GE432	4.78 mm	0.188 "	Poly-Vinyl Chloride (PVC)	Enter Number of Meters in Order Quantity	0.007 in	20	2	Gray	Multi-Conductor	98.43 ft 984.3 ft	30 m 300 m	Copper Bare	Chemical Resistant Oil Resistant UV Resistant	300 VDC	80 °C	-40 C	0.0256 in	0.65 mm	1 m 20 m	3.28 ft 65.62 ft	Industrial	984.3 ft	300 m	21 AWG	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470025YY GE321	4.78 mm	0.188 "	Poly-Vinyl Chloride (PVC)		0.007 in	20	2	Gray	Multi-Conductor			Copper Bare	Chemical Resistant Oil Resistant UV Resistant	300 VDC	80 °C	-40 C	0.0256 in	0.65 mm	50 m	164 ft	Industrial			21 AWG	Poly-Vinyl Chloride (PVC)
