PBO-FC Series

Catalog

CONFIG SW BODY PUSHBUT NON-ILLUM

Part	Actuator Type	Requires	Panel Cutout Dimensions [diameter]	Type	Illumination	Mechanical Life	Circuit	Voltage Rating - AC	Switch Function	Termination Style	Mounting Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Marking	Current Rating (Amps)	Ingress Protection
c3controls PBO-FCRD	Pushbutton Round	Contact Block(s)	30.2 mm	Momentary	Non-Illuminated
c3controls PBO-FCRD-NC	Button Flush Round		30.2 mm	Standard		5000000 Cycles	SPST-NC	72 V	On-Mom	Screw Terminal	Panel Mount Rear	Red	55 °C	-40 C	28 V	No Marking	5 A 10 A	IP65 - Dust Tight Water Resistant

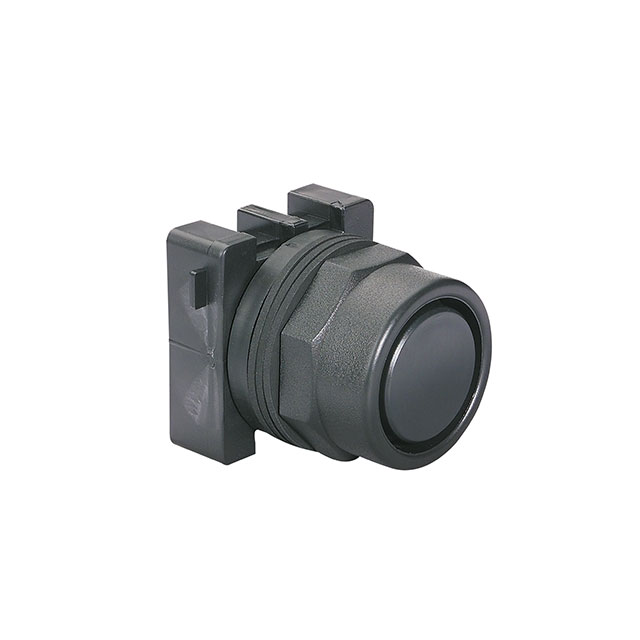

c3controls PBO-FCBK-NO	Button Flush Round		30.2 mm	Standard		5000000 Cycles	SPST-NO	72 V	Off-Mom	Screw Terminal	Panel Mount Rear	Black	55 °C	-40 C	28 V	No Marking	5 A 10 A	IP65 - Dust Tight Water Resistant
