150170 Series
Manufacturer: Molex
Beta
⌘K

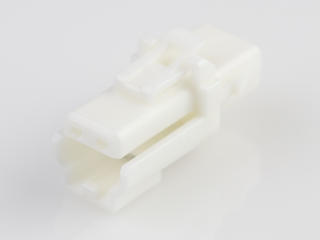

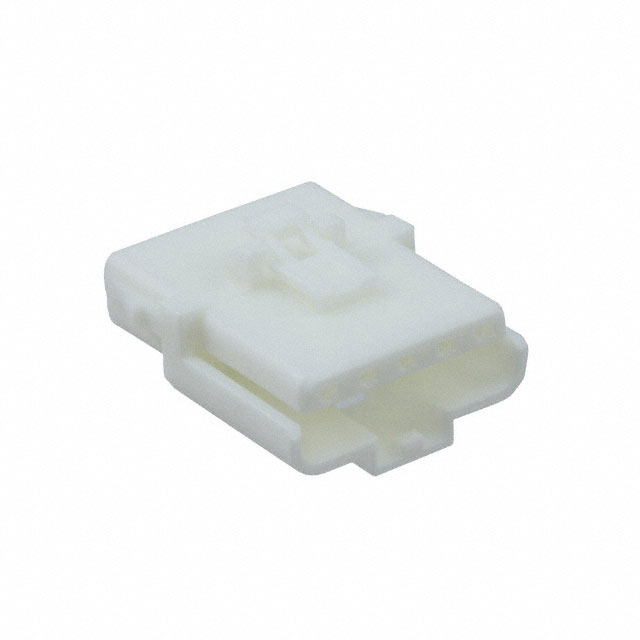

HEADERS & WIRE HOUSINGS DITTO HSG WTW 1X04P
| Part | Note | Pitch | Pitch | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type | Insulation Material | Contact Type | Connector Type | Number of Positions | Number of Rows | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Contacts Not Included | 0.118 in | 3 mm | Latch Lock | -40 C | 105 ░C | Natural | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Non-Gendered | Self Mating Non-Gendered Hermaphroditic | 4 | 1 | Crimp |
 Molex | 0.118 in | 3 mm | Latch Lock | -40 C | 105 ░C | Natural | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Non-Gendered | Self Mating Non-Gendered Hermaphroditic | 1 | Crimp | ||
 Molex | 0.118 in | 3 mm | Latch Lock | -40 C | 105 ░C | Natural | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Non-Gendered | Self Mating Non-Gendered Hermaphroditic | 7 | 1 | Crimp | |
 Molex | Contacts Not Included | 0.118 in | 3 mm | Latch Lock | -40 C | 105 ░C | Natural | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Non-Gendered | Self Mating Non-Gendered Hermaphroditic | 5 | 1 | Crimp |
 Molex | Contacts Not Included | 0.118 in | 3 mm | Latch Lock | -40 C | 105 ░C | Natural | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Non-Gendered | Self Mating Non-Gendered Hermaphroditic | 2 | 1 | Crimp |
