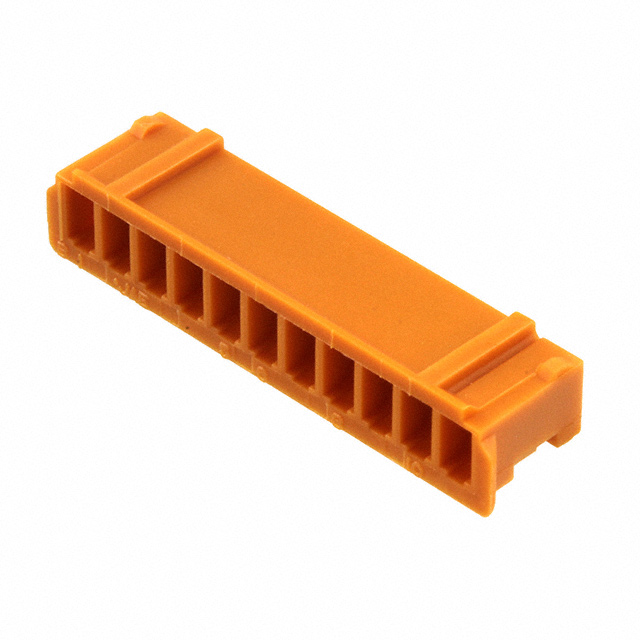

IL-S-11 Series

Catalog

CONN HEADER R/A 11POS 2MM

Part	Connector Type	Voltage Rating	Contact Material	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Contact Type	Contact Finish - Post	Number of Positions	Termination	Current Rating (Amps)	Shrouding	Contact Length - Post	Contact Length - Post	Style	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Rows	Insulation Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Note	Pitch [x]	Pitch [x]	Contact Termination	Mated Stacking Heights
JAE Electronics IL-S-11P-S2L2-EF	Header	300 VAC 400 V	Brass	0.126 in	3.2 mm	All	Push-Pull	Square	0.177 in	4.5 mm	Male Pin	Tin	11	Kinked Pin Solder	3 A	Shrouded - 4 Wall	0.138 in	3.5 mm	Board to Cable/Wire	UL94 V-0	0.079 "	2 mm	Right Angle Through Hole	1	Nylon 6/6 Polyamide (PA66)	Brown	85 °C	-40 C
JAE Electronics IL-S-11S-S2C2	Receptacle										Female Socket		11										Free Hanging (In-Line)	1	Nylon 6/6 Polyamide (PA66)		85 °C	-40 C	Contacts Not Included	0.079 in	2 mm	Crimp
JAE Electronics IL-S-11P-S2T2-EF	Header	300 VAC 400 V	Brass	0.126 in	3.2 mm	All	Detent Lock	Square	0.217 in	5.51 mm	Male Pin	Tin	11	Kinked Pin Solder	3 A	Shrouded - 4 Wall	0.138 in	3.5 mm	Board to Cable/Wire	UL94 V-0	0.079 "	2 mm	Through Hole	1	Nylon 6/6 Polyamide (PA66)	Brown	85 °C	-40 C					7.5 mm
