747916 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

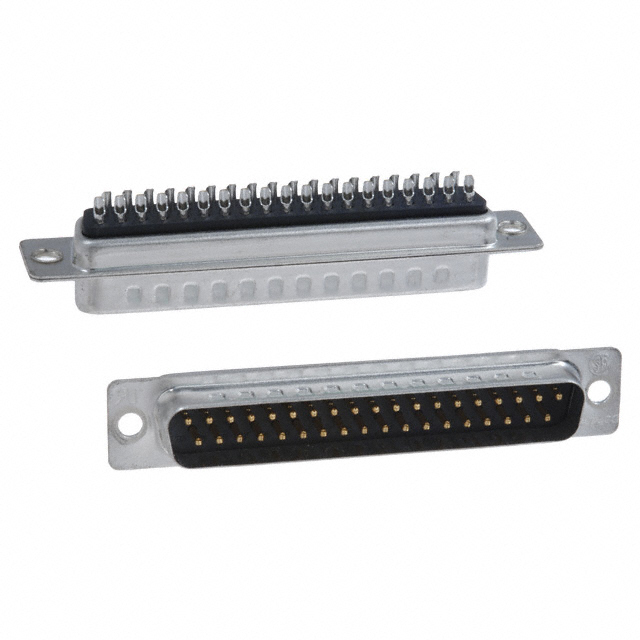

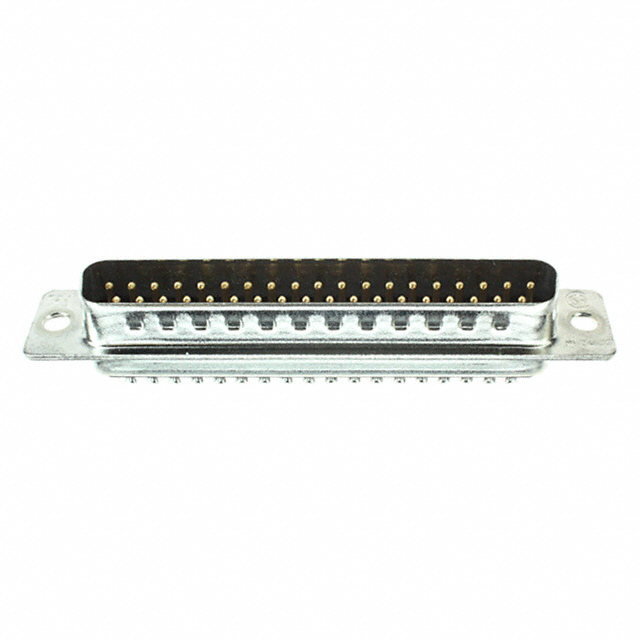

CONN D-SUB PLUG 37POS SLDR CUP
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Number of Rows [custom] | Current Rating (Amps) | Contact Finish | Contact Type | Connector Style | Number of Positions | Mounting Type | Connector Type | Flange Feature | Features | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 3 A | Gold | Signal | D-Sub | 37 | Free Hanging (In-Line) | Plug Male Pins | Housing/Shell (Unthreaded) | Grounding Indents | 0.203 çm | 8 µin | UL94 V-0 | 4 | DC C | ||
 TE Connectivity AMP Connectors | Brass | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 3 A | Gold | Signal | D-Sub | 37 | Free Hanging (In-Line) | Plug Male Pins | Housing/Shell (Unthreaded) | 0.203 çm | 8 µin | UL94 V-0 | 4 | DC C | Blue Zinc Plated | Steel | |
 TE Connectivity AMP Connectors | Brass | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 3 A | Gold | Signal | D-Sub | 37 | Free Hanging (In-Line) | Plug Male Pins | Housing/Shell (Unthreaded) | Grounding Indents | 0.76 Ám | 30 Áin | UL94 V-0 | 4 | DC C |
