163A186 Series
Manufacturer: Amphenol CONEC
Beta
⌘K

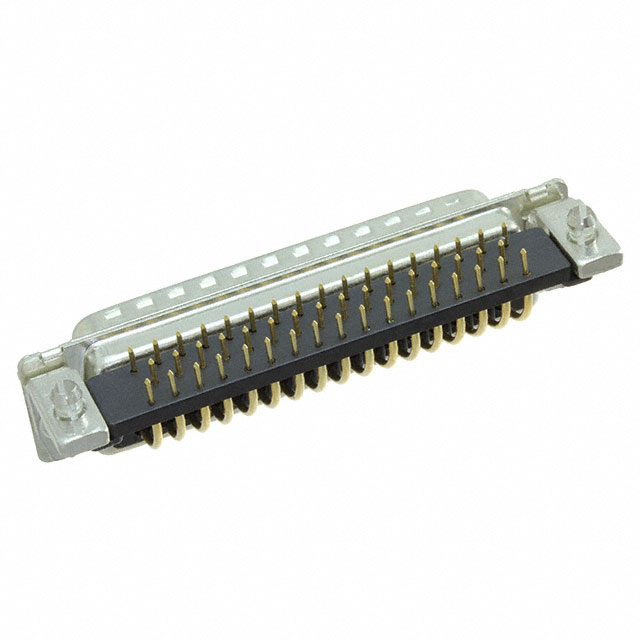

CONN D-SUB PLUG 37POS R/A SLDR
| Part | Number of Rows | Number of Positions | Color | Features | Contact Finish | Contact Material | Material Flammability Rating | Contact Finish Thickness | Dielectric Material | Connector Type | Contact Type | Current Rating (Amps) | Shell Size, Connector Layout | Mounting Type | Backset Spacing | Backset Spacing | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Flange Feature | Voltage Rating | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | 2 | 37 | Black | Board Lock Grounding Indents | Gold | Copper Alloy | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) Glass Filled | Male Pins Plug | Signal | 7.5 A | 4 (DC C) | Board Edge Right Angle Through Hole | 0.283 in | 7.2 mm | Solder | -55 °C | 125 °C | D-Sub | 4-40 | 125 VDC | |
 Amphenol CONEC | 3 | 50 | Black | Board Lock Grounding Indents | Gold | Copper Alloy | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) Glass Filled | Male Pins Plug | Signal | 7.5 A | Board Edge Right Angle Through Hole | 0.283 in | 7.2 mm | Solder | -55 °C | 125 °C | D-Sub | 4-40 | 125 VDC | 5 | |
Amphenol CONEC | 2 | 15 | Black | Board Lock Grounding Indents | Gold | Copper Alloy | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) Glass Filled | Male Pins Plug | Signal | 7.5 A | Board Edge Right Angle Through Hole | 0.283 in | 7.2 mm | Solder | -55 °C | 125 °C | D-Sub | 4-40 | 125 VDC | 2 |
