1612163 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN PCI EXP FMALE 36POS 0.039

Part	Contact Finish	Number of Positions	Card Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Material - Insulation	Pitch [x]	Pitch [x]	Mounting Type	Color	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Number of Rows	Card Thickness	Card Thickness
TE Connectivity Raychem Cable Protection 4-1612163-1	Gold	36	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy	0.76 Ám	30 Áin	Dual	Female	2	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 6-1612163-1	Gold	36	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy			Dual	Female	2	0.062 in	1.57 mm

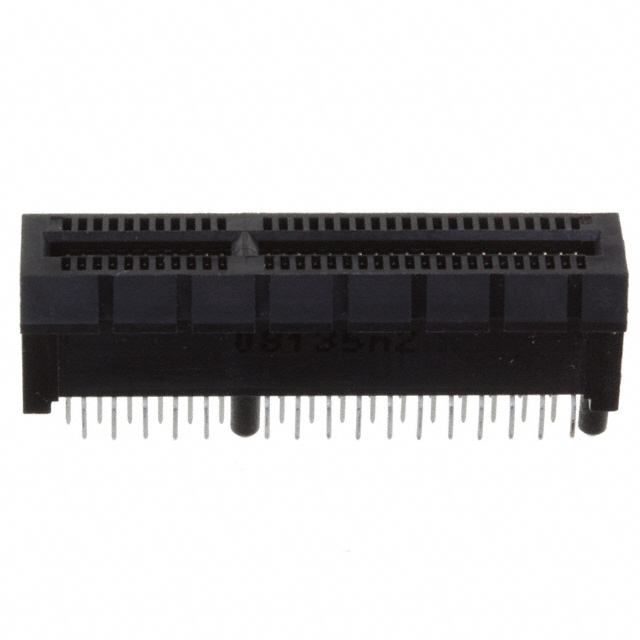

TE Connectivity Raychem Cable Protection 2-1612163-2	Gold	64	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy	0.38 µm	15 µin	Dual	Female	2	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 1-1612163-1	Gold	36	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy			Dual	Female	2	0.062 in	1.57 mm

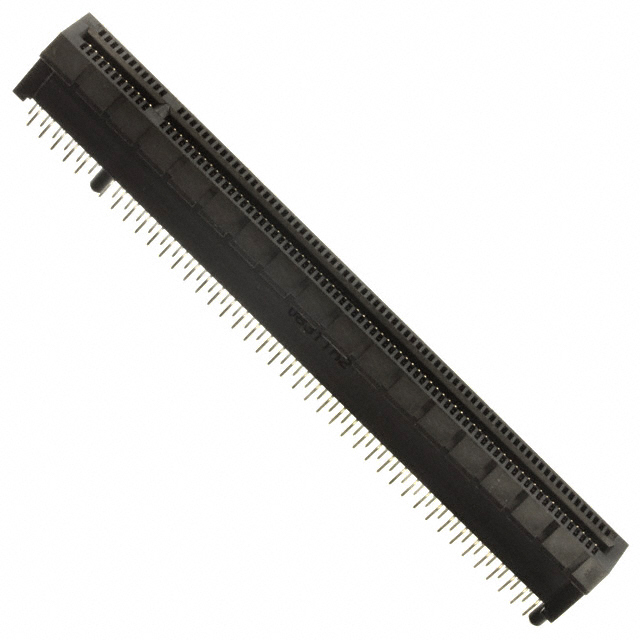

TE Connectivity Raychem Cable Protection 4-1612163-4	Gold	164	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy	0.76 Ám	30 Áin	Dual	Female	2	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 3-1612163-4	Gold	164	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy	0.38 µm	15 µin	Dual	Female	2	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 8-1612163-2	Gold	64	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy	0.76 Ám	30 Áin	Dual	Female	2	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 1612163-1	Gold	36	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy			Dual	Female	2	0.062 in	1.57 mm
TE Connectivity Raychem Cable Protection 1612163-3	Gold	98	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy			Dual	Female	2	0.062 in	1.57 mm

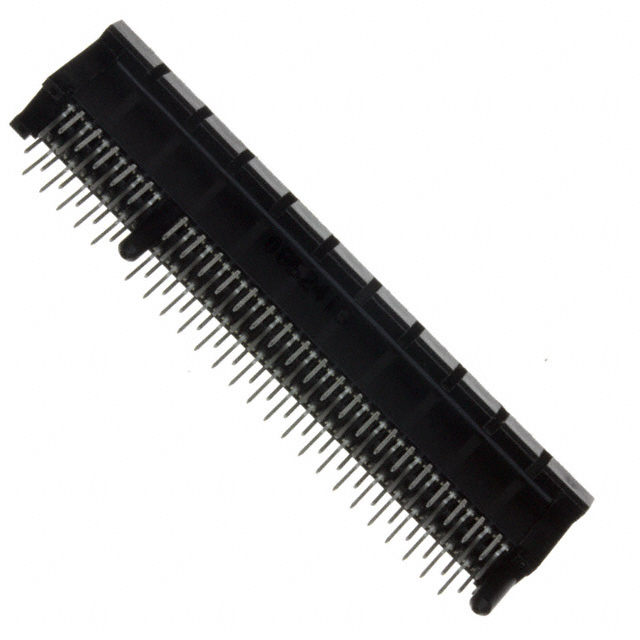

TE Connectivity Raychem Cable Protection 5-1612163-3	Gold	98	PCI Express™	Solder Staggered	85 °C	-40 °C	Board Guide Locking Ramp	Thermoplastic	0.039 in	1 mm	Through Hole	Black	Copper Alloy	0.76 Ám	30 Áin	Dual	Female	2	0.062 in	1.57 mm
