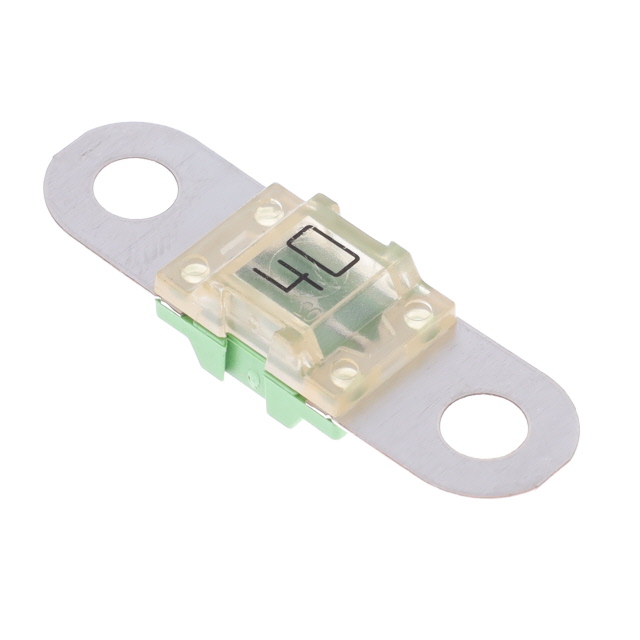

153.5631.5402 Series

Fuse - BF1 32V / 2000A DC, 40A 1000 pc

Catalog

Fuse - BF1 32V / 2000A DC, 40A 1000 pc

Part	Current Rating (Amps)	DC Cold Resistance	Voltage Rating - DC	Response Time	Melting I²t	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Fuse Type	Color	Package / Case	Breaking Capacity @ Rated Voltage
Littelfuse/Commercial Vehicle Products 153.5631.5402	40 A	0.00156 Ohms	32 V	Slow Blow	6800	UL	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm	Bolt Mount	Automotive	Green	Auto Link	2 kA

Fuse - BF1 32V / 2000A DC, 40A 1000 pc

• Green housing indicates 40 A rating

• Interrupting rating of 2000 A at 32 V dc

• Tin-plated copper alloy terminals

• Refers to ISO 8820-5:2015

• UL Recognized in Canada and United States as a UL Special Purpose Fuse

This 40 A BF1 32V bolt-down automotive fuse employs SLO-BLO® technology to provide time-delayed protection for high-current wiring harnesses.
