0ATO020.MXGLO Series

Fuse - ATO SmartGlow 32VDC 20A 1000 pc

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - ATO SmartGlow 32VDC 20A 1000 pc

Part	Fuse Type	Response Time	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Color	Voltage Rating - DC	Package / Case	Approval Agency
Littelfuse/Commercial Vehicle Products 0ATO020.MXGLO	Automotive	Fast Blow	5.08 mm	12.19 mm	19.05 mm	0.75 in	0.2 "	0.48 in	Requires Holder	32 V	20 A	Yellow	32 V	ATC ATO Blade	CSA SAE UL

Catalog

Fuse - ATO SmartGlow 32VDC 20A 1000 pc

Key Features

• Yellow housing indicates 20 A rating

• Tin-plated zinc alloy terminals

• Net weight 1.4 g ±5 %

• Complies with SAE J2077

• UL Listed

Description

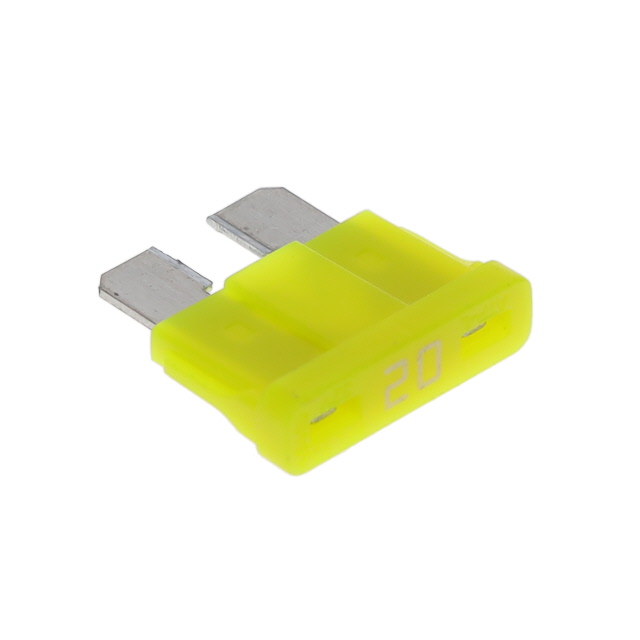

This 20 A ATO® Smart Glow fuse provides fast-acting circuit protection. The bladed automotive fuse is rated at 32 V, and it performs similarly to ATO 287 Series, ATOF®, and ATO Silver fuses. An indicator light comes when the ATO Smart Glow fuse blows.
