46.61.8 Series

Catalog

RELAY GEN PURPOSE SPDT 16A 120V

Part	Coil Resistance	Coil Type	Load - Max Switching [Max]	Release Time	Mounting Type	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Operate Time	Must Release Voltage	Termination Style	Termination Style	Coil Voltage	Approval Agency	Coil Current	Relay Type	Must Operate Voltage	Contact Form	Contact Material	Features
Finder Relays, Inc. 46.61.8.120.4054	9 kOhms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	24 VAC	0.187 in 4.7 mm	Plug In Quick Connect	120 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	8.4 mA	General Purpose	96 VAC	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)
Finder Relays, Inc. 46.61.8.012.0054	80 Ohms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	2.4 VAC/DC	0.187 in 4.7 mm	Plug In Quick Connect	12 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	90 mA	General Purpose	9.6 VAC/DC	SPDT (1 Form C)	Silver Nickel (AgNi)
Finder Relays, Inc. 46.61.8.120.5054	9 kOhms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	24 VAC	0.187 in 4.7 mm	Plug In Quick Connect	120 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	8.4 mA	General Purpose	96 VAC	SPDT (1 Form C)	Gold (Au) Silver Nickel (AgNi)
Finder Relays, Inc. 46.61.8.230.0054	28 kOhms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	46 VAC	0.187 in 4.7 mm	Plug In Quick Connect	230 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	5 mA	General Purpose	184 VAC	SPDT (1 Form C)	Silver Nickel (AgNi)
Finder Relays, Inc. 46.61.8.012.0040	80 Ohms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	2.4 VAC/DC	0.187 in 4.7 mm	Plug In Quick Connect	12 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	90 mA	General Purpose	9.6 VAC/DC	SPDT (1 Form C)	Silver Nickel (AgNi)	Mechanical Indicator Test Button
Finder Relays, Inc. 46.61.8.240.0040	31.5 kOhms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	48 VAC	0.187 in 4.7 mm	Plug In Quick Connect	240 VAC/DC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.1 mA	General Purpose	192 VAC	SPDT (1 Form C)	Silver Nickel (AgNi)	Mechanical Indicator Test Button

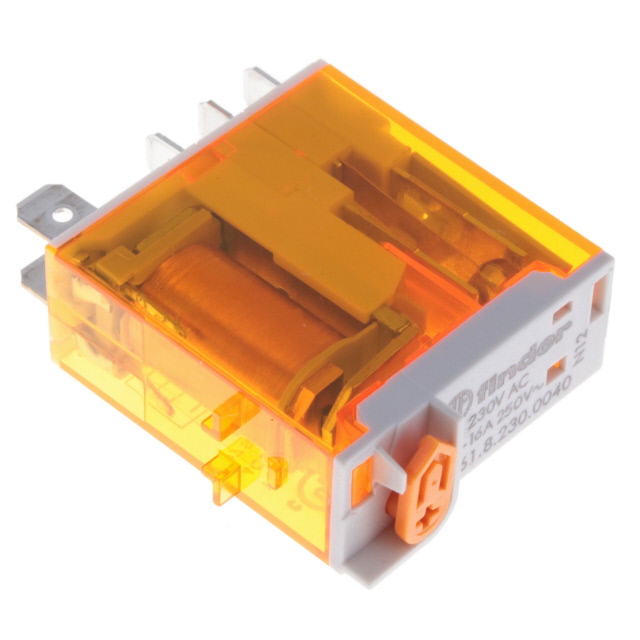

Finder Relays, Inc. 46.61.8.230.0040	28 kOhms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	46 VAC	0.187 in 4.7 mm	Plug In Quick Connect	230 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	5 mA	General Purpose	184 VAC	SPDT (1 Form C)	Silver Nickel (AgNi)	Mechanical Indicator Test Button
Finder Relays, Inc. 46.61.8.240.0054	31.5 kOhms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	48 VAC	0.187 in 4.7 mm	Plug In Quick Connect	240 VAC/DC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	4.1 mA	General Purpose	192 VAC	SPDT (1 Form C)	Silver Nickel (AgNi)
Finder Relays, Inc. 46.61.8.024.0054	533.3 Ohms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	4.8 VAC	0.187 in 4.7 mm	Plug In Quick Connect	24 VAC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	45 mA	General Purpose	19.2 VAC	SPDT (1 Form C)	Silver Nickel (AgNi)
Finder Relays, Inc. 46.61.8.110.0040	6.9 kOhms	Non Latching	7040 VA	5 ms	Socketable	16 A	70 °C	-40 C	440 VAC	15 ms	22 VAC	0.187 in 4.7 mm	Plug In Quick Connect	110 VAC/DC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	9.4 mA	General Purpose	88 VAC/DC	SPDT (1 Form C)	Silver Nickel (AgNi)	Mechanical Indicator Test Button
