502351 Series
Manufacturer: Molex
Beta
⌘K
DURACLIK WIRE-TO-BOARD RECEPTACLE HOUSING, SINGLE ROW, 2 CIRCUITS, NATURAL
| Part | Number of Positions | Color | Note | Mounting Type | Contact Termination | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Number of Rows | Contact Type | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

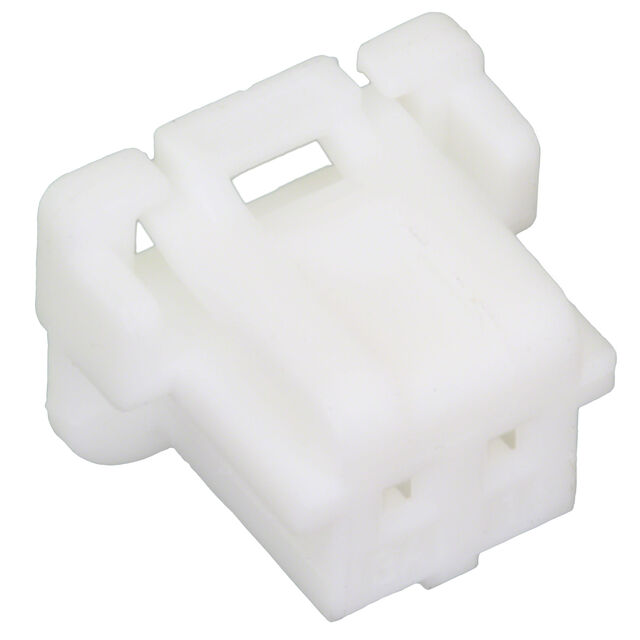

 Molex | 2 | Natural | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |

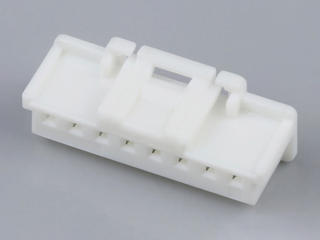

 Molex | 8 | Natural | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |

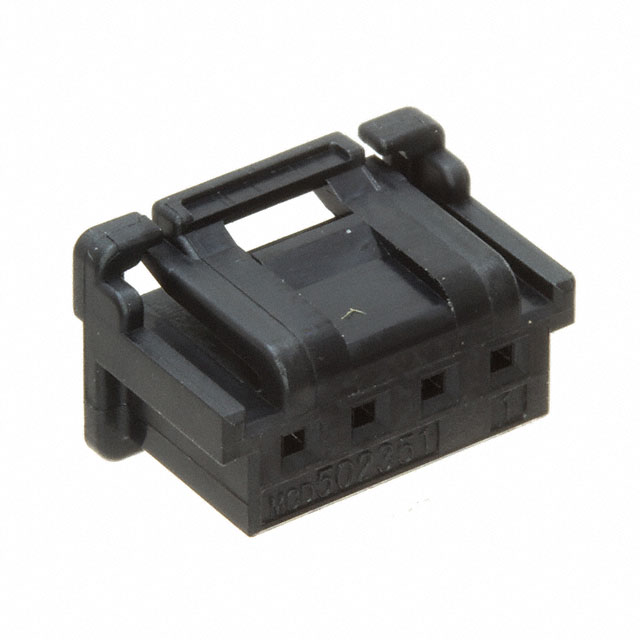

 Molex | 4 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |

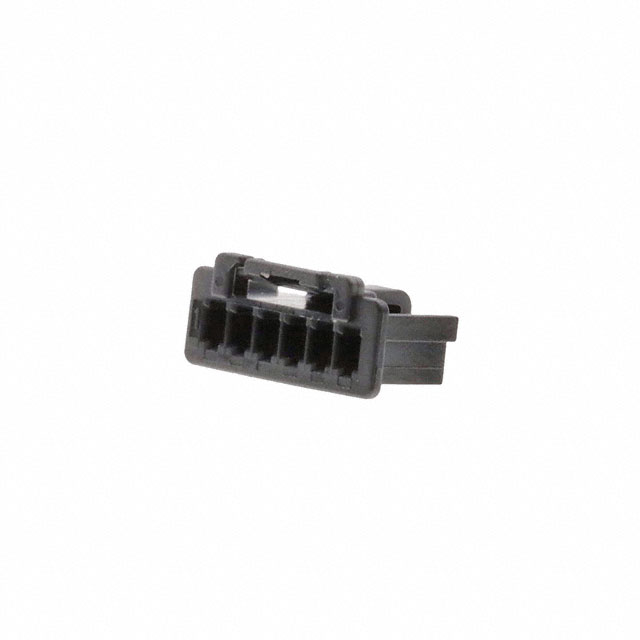

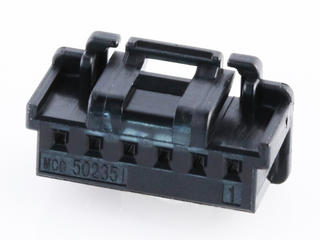

 Molex | 6 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |

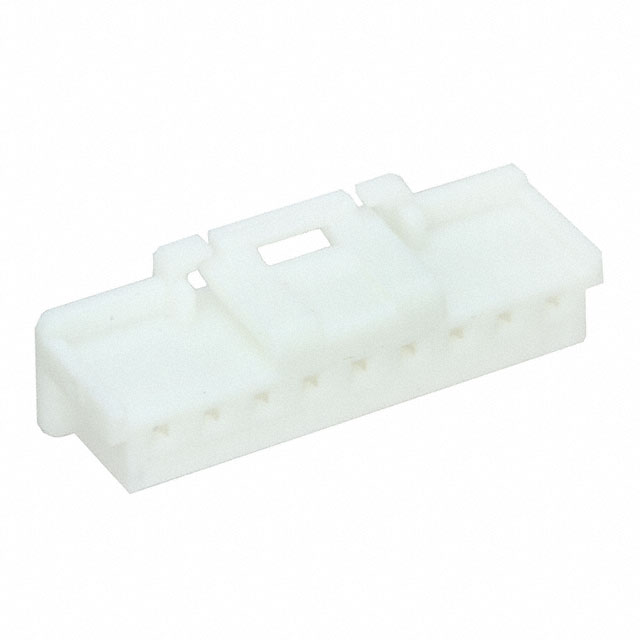

 Molex | 9 | Natural | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |

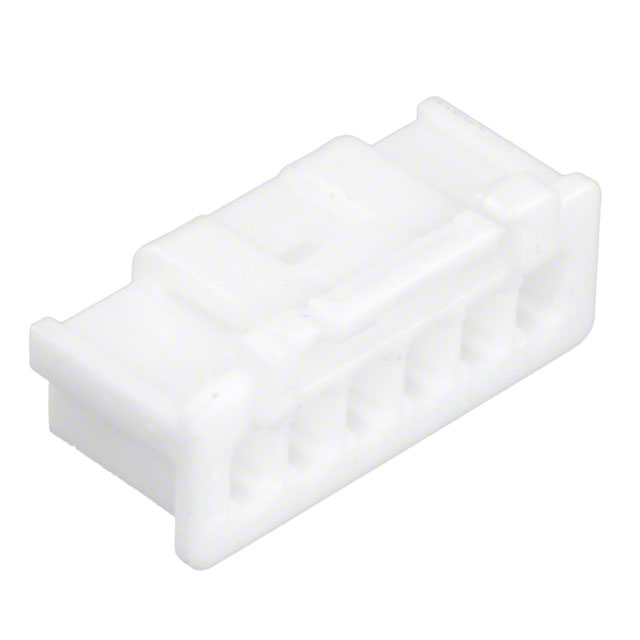

 Molex | 6 | Natural | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |

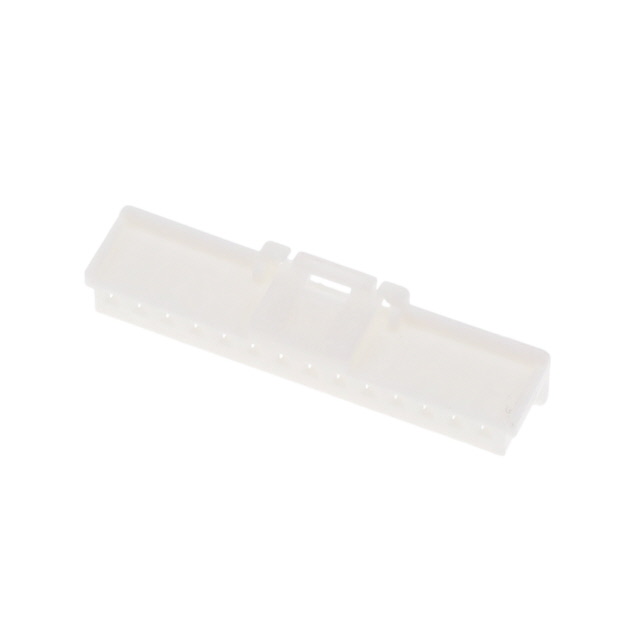

 Molex | 14 | Natural | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |

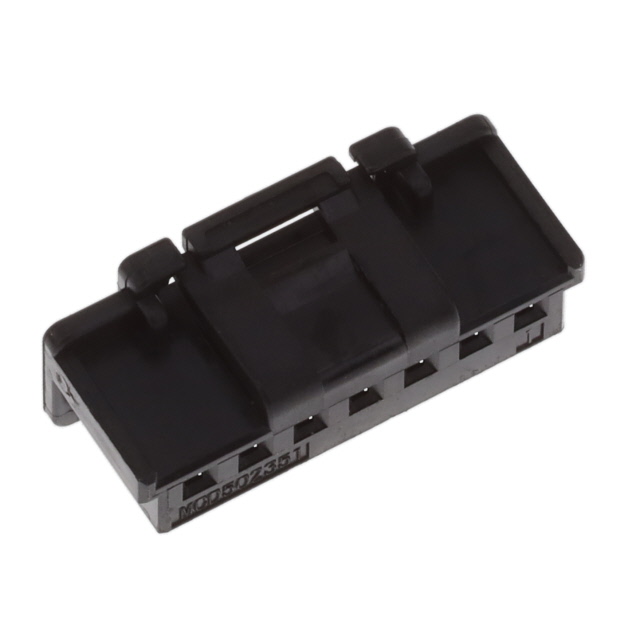

 Molex | 7 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |
 Molex | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle | |

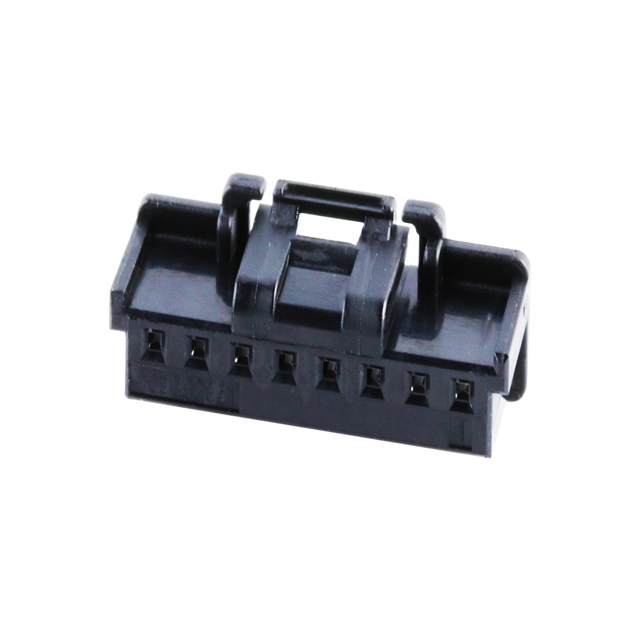

 Molex | 8 | Black | Contacts Not Included | Free Hanging (In-Line) | Crimp | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | 0.079 in | 2 mm | 1 | Female Socket | Latch Holder | Receptacle |
