M13209 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

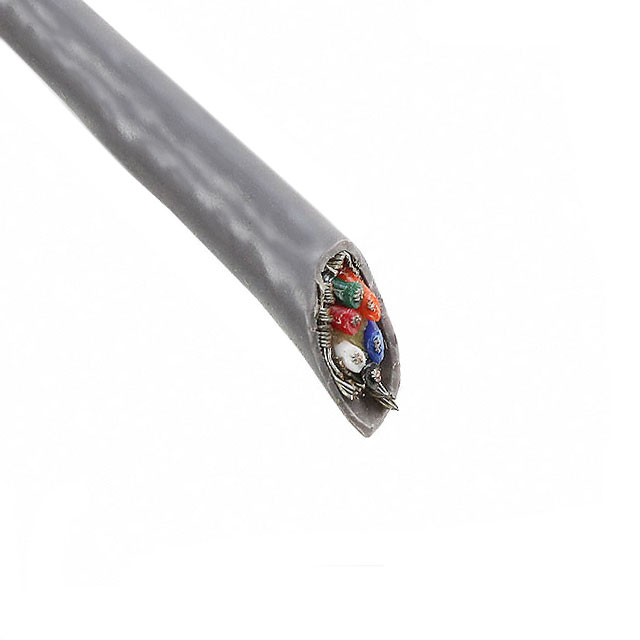

CABLE 6COND 20AWG SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Length | Length | Cable Type | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | 6 | Slate | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.813 mm | 0.032 in | UL Style 2464 | 304.8 m | 1000 ft | Multi-Conductor | Copper Tinned | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 7.62 mm | 0.3 in | Braid | 28 AWG | 7 | 20 AWG |
ALPHA WIRE | Copper Tinned | 85 % | 6 | Slate | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.813 mm | 0.032 in | UL Style 2464 | 304.8 m | 1000 ft | Multi-Conductor | Copper Tinned | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 7.62 mm | 0.3 in | Braid | 28 AWG | 7 | 20 AWG |
