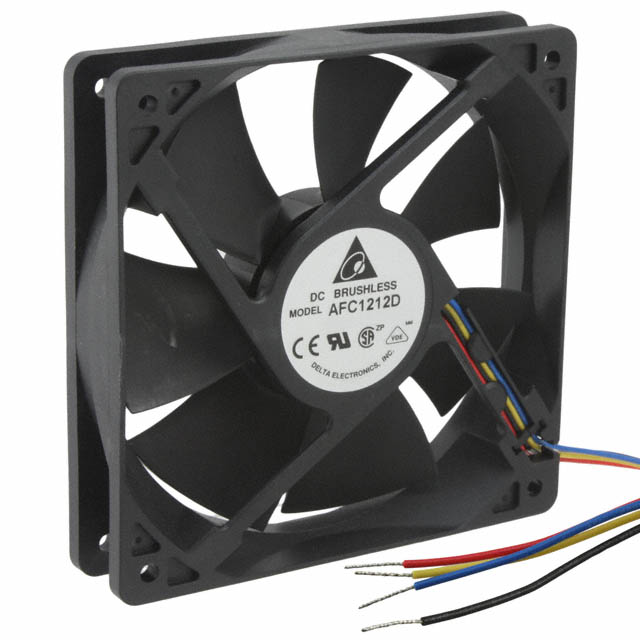

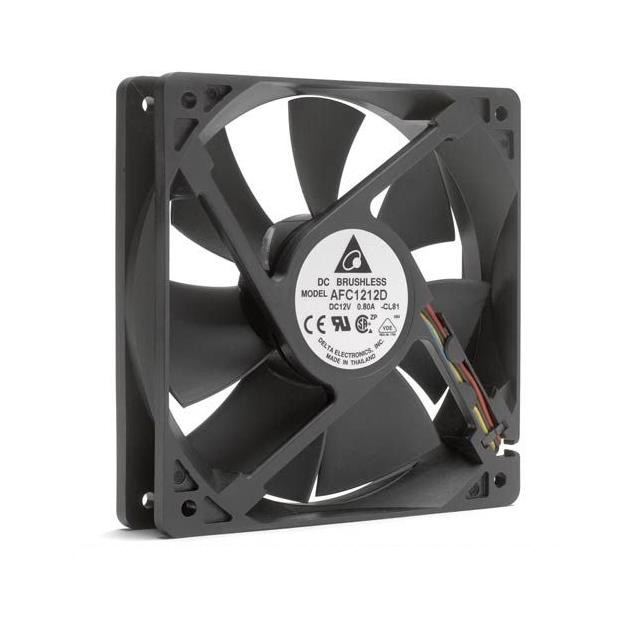

AFC1212 Series
Manufacturer: Delta Electronics
Beta
⌘K
DC FANS FAN, 120X25MM, 12VDC, 89.7CFM, 3.84W, 0.32A, 46DBA, BALL, 4-LEADS, TACH/PWM
| Part | Lifetime @ Temp. | Current Rating (Amps) | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Features | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Noise | Static Pressure | Static Pressure | RPM | Air Flow | Air Flow | Termination | Bearing Type | Voltage - Rated | Weight [custom] | Weight [custom] | Fan Type | Power (Watts) | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | 320 mA | Plastic | 10.8 VDC | 12.6 VDC | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | CE CSA UL VDE | 120 mm | 120 mm | -10 °C | 60 °C | 25.4 mm | 46 dB(A) | 0.338 in H2O | 84.2 Pa | 3000 RPM | 89.7 CFM | 2.51 m³/min | 4 Wire Leads | Ball | 12 VDC | 228.16 g | 0.503 lb | Tubeaxial | 3.84 W | ||
 Delta Electronics | 70000 Hrs | 0.53 A | Plastic | 10.2 VDC | 13.8 VDC | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | CE CSA UL VDE | 120 mm | 120 mm | -10 °C | 60 °C | 25.4 mm | 46.5 dB | 0.43 in H2O | 107.1 Pa | 3400 RPM | 113.1 CFM | 3.17 mł/min | 4 Wire Leads | Ball | 12 VDC | Tubeaxial | 6.36 W | 0.437 lb | 198 g |
