T 3435 Series

Catalog

CONN PLUG FMALE 7P SOLDER CUP

Part	Connector Type	Orientation	Current Rating (Amps)	Contact Finish - Mating	Ingress Protection	Fastening Type	Shell Size - Insert	Primary Material	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Mounting Type	Voltage Rating	Shell Finish	Color	Housing Color	Shielding	Type	Insert Material	Material Flammability Rating	Contact Size	Contact Shape	Contact Type	Note
Amphenol Tuchel Industrial T 3435 502	Plug Female Sockets	Keyed	7 A	Silver	IP40	Bayonet Lock	M16-7	Plastic	Plastic	-40 C	100 °C	7	Cable Clamp Strain Relief	Free Hanging (In-Line)	250 V

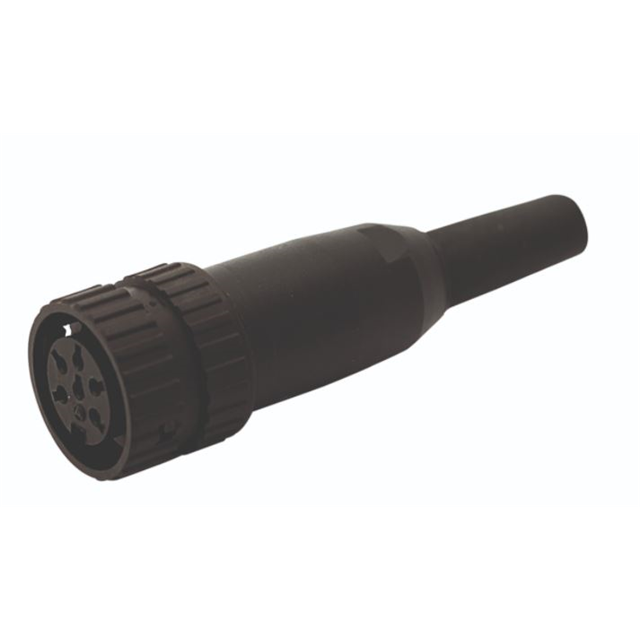

Amphenol Tuchel Industrial T 3435 991	Plug Female Sockets	Keyed	7 A	Silver	IP40	Bayonet Lock	M16-7	Plastic	Plastic	-40 C	100 °C	7	Strain Relief	Free Hanging (In-Line)	250 V

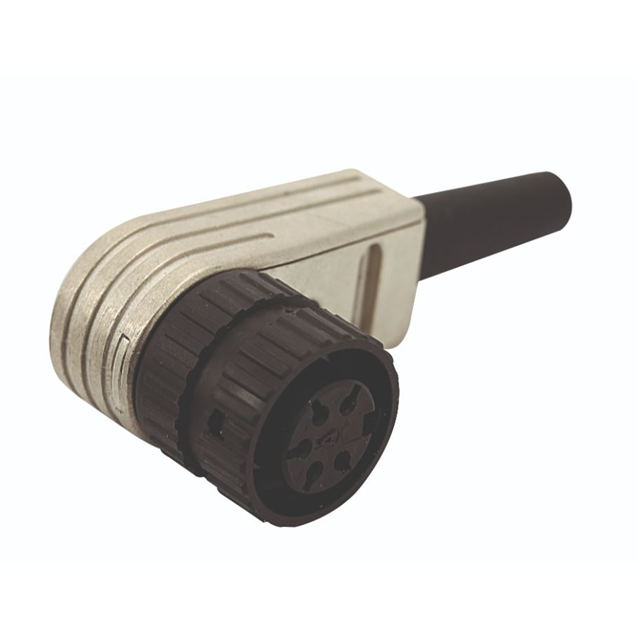

Amphenol Tuchel Industrial T 3435 005	Plug Female Sockets	Keyed	7 A	Silver	IP40	Bayonet Lock	M16-7	Metal	Die Cast	-40 C	100 °C	7	Strain Relief	Free Hanging (In-Line) Right Angle	250 V	Nickel	Silver

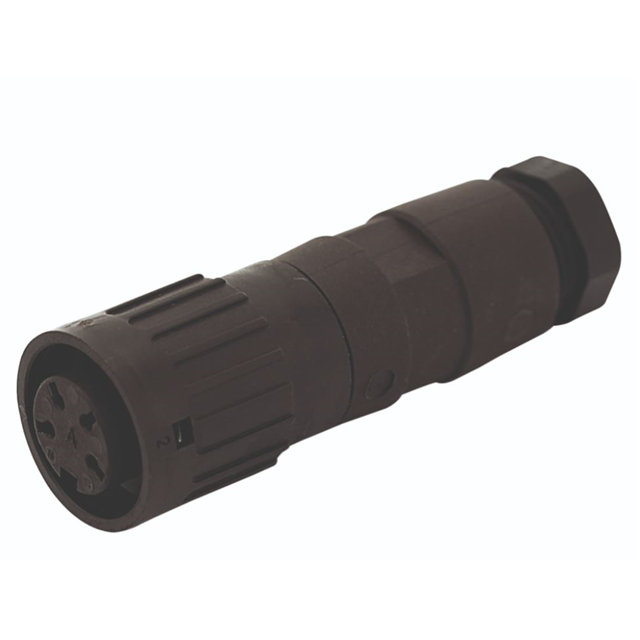

Amphenol Tuchel Industrial T 3435 552	Plug Housing	Keyed			IP40	Bayonet Lock	M16-7		Plastic	-40 C	100 °C	7	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)				Black	Unshielded	For Female Sockets	Thermoplastic	UL94 V-0	1.5 mm	Circular	Crimp	Contacts Not Included
