R12405 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

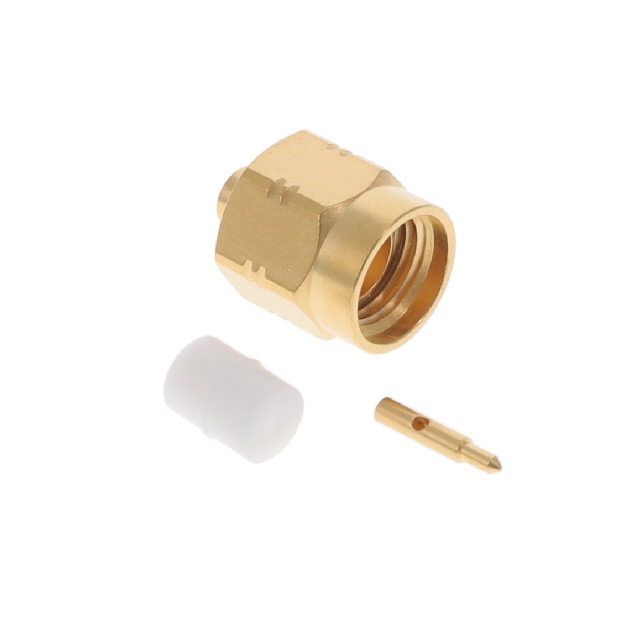

SMA / STRAIGHT PLUG SOLDER TYPE
| Part | Body Material | Body Finish | Center Contact Plating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Mounting Type | Connector Style | Housing Color | Shield Termination | Number of Ports | Frequency - Max [Max] | Contact Termination | Fastening Type | Cable Group | Connector Type | Center Contact Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | Gold | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | 500 V | Free Hanging (In-Line) | SMA | Gold | Solder | 1 | 18 GHz | Solder | Threaded | RG-405 (.085" Semi Rigid) | Plug Male Pin | Brass | 50 Ohms |
 Radiall USA, Inc. | Stainless Steel | Gold | Gold | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | 335 V | Free Hanging (In-Line) | SMA | Gold | Solder | 1 | 18 GHz | Solder | Threaded | RG-405 (.085" Semi Rigid) | Plug Male Pin | Brass | 50 Ohms |
