316-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K

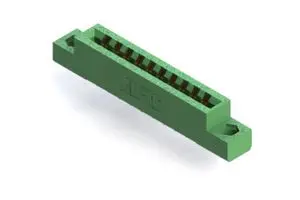

CONN EDGE DUAL FMALE 20POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish | Card Type | Flange Feature | Color | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions/Bay/Row | Number of Positions | Termination | Number of Rows [custom] | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Pitch | Pitch | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder Eyelet(s) | 2 | Panel Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | |||
EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder | 2 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | 0.116 " | 2.95 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder | 2 | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder | 2 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder | 2 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | 0.128 " | 3.25 mm | |
EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder Eyelet(s) | 2 | Panel Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder | 2 | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | 0.156 " | 3.96 mm | |
EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder | 2 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Green | 0.25 Ám | 10 Áin | Dual | 10 | 20 | Solder | 2 | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | -40 C | 105 ░C | Cantilever | 3.96 mm | 0.156 in | Copper Alloy |
