83612 Series
Manufacturer: Belden Inc.
Beta
⌘K

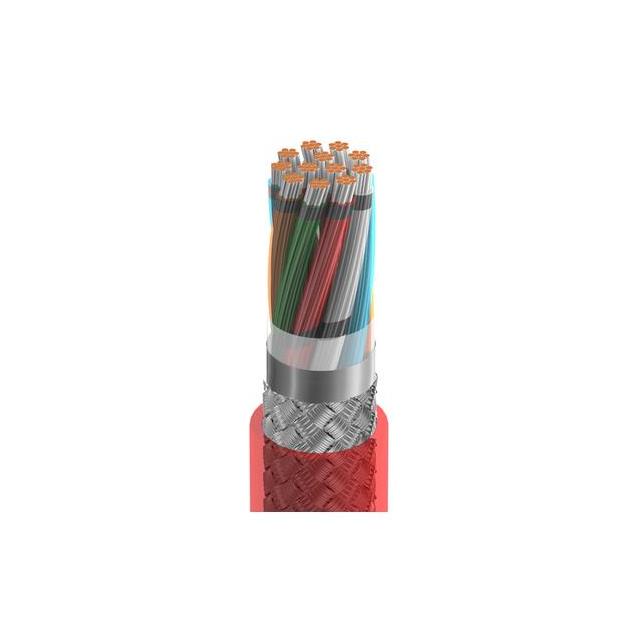

CABLE 12COND 20AWG RED SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket Color | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Number of Conductors | Voltage | Cable Type | Length | Length | Conductor Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | 20 AWG | 28 AWG | 7 | 6.73 mm | 0.265 in | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | Audio Control Instrumentation | -70 °C | 200 °C | 0.014 in | 0.356 mm | Braid Foil | 12 | 300 VDC | Multi-Conductor | 152.4 m | 500 ft | Copper Tinned | UL Style CMP |
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | 20 AWG | 28 AWG | 7 | 6.73 mm | 0.265 in | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | Audio Control Instrumentation | -70 °C | 200 °C | 0.014 in | 0.356 mm | Braid Foil | 12 | 300 VDC | Multi-Conductor | 304.8 m | 1000 ft | Copper Tinned | UL Style CMP |
