S12B-PAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

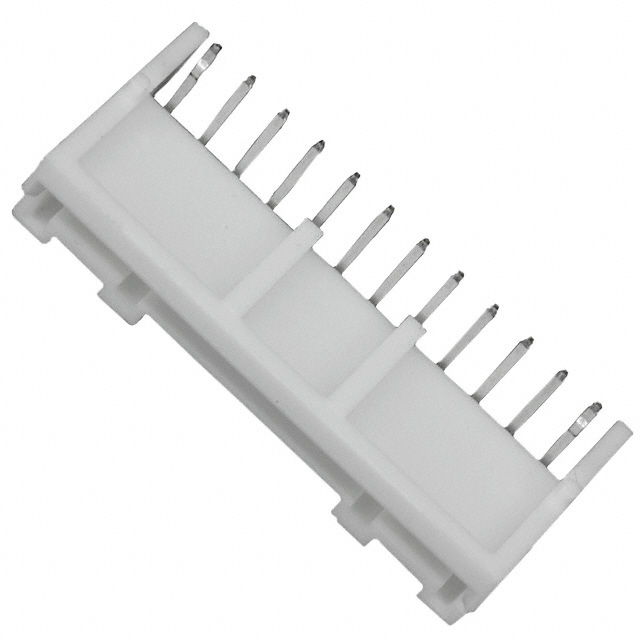

CONN HEADER R/A 12POS 2MM
| Part | Mounting Type | Insulation Height | Insulation Height | Contact Type | Number of Positions | Material Flammability Rating | Number of Rows | Contact Shape | Style | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Voltage Rating | Connector Type | Fastening Type | Contact Length - Post [x] | Contact Length - Post | Insulation Color | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Termination | Insulation Material | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Shrouding | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Through Hole | 0.256 in | 6.5 mm | Male Pin | 12 | UL94 V-0 | 1 | Square | Board to Cable/Wire | 3 A | 0.079 " | 2 mm | 250 V | Header | Locking Ramp | 0.134 " | 3.4 mm | Natural | Tin | 0.126 in | 3.2 mm | Kinked Pin Solder | Polybutylene Terephthalate (PBT) Glass Filled | All | 85 °C | -25 °C | Copper Alloy | Shrouded - 4 Wall | Board Guide |
