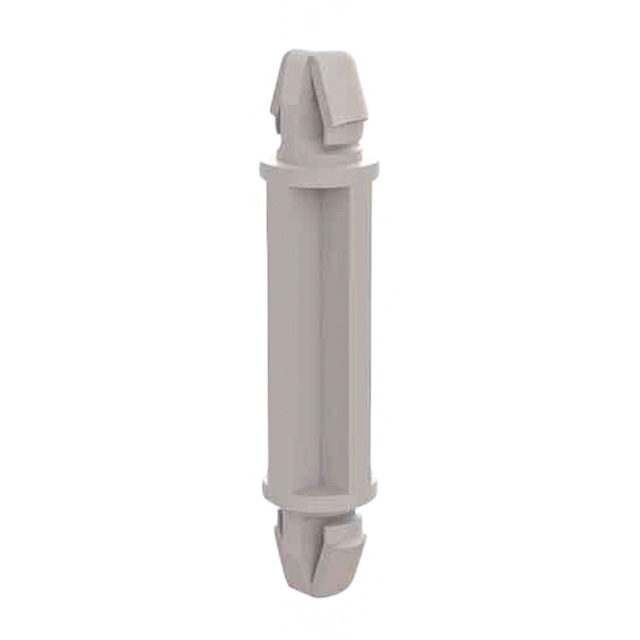

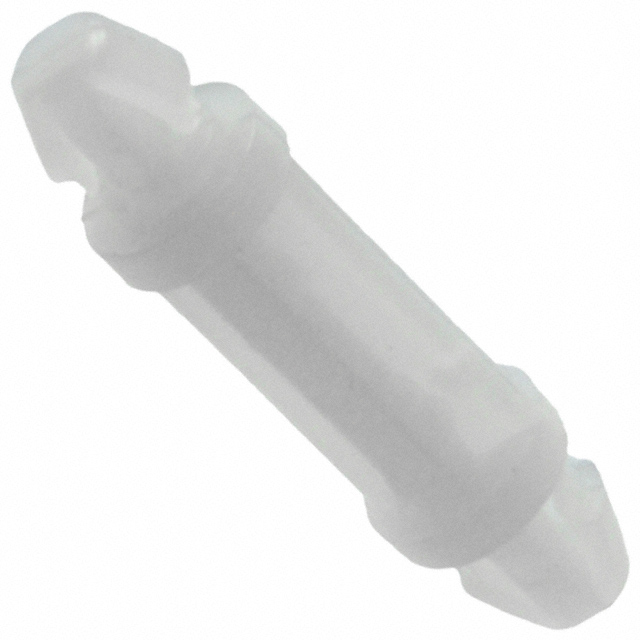

DLSP-1 Series

Catalog

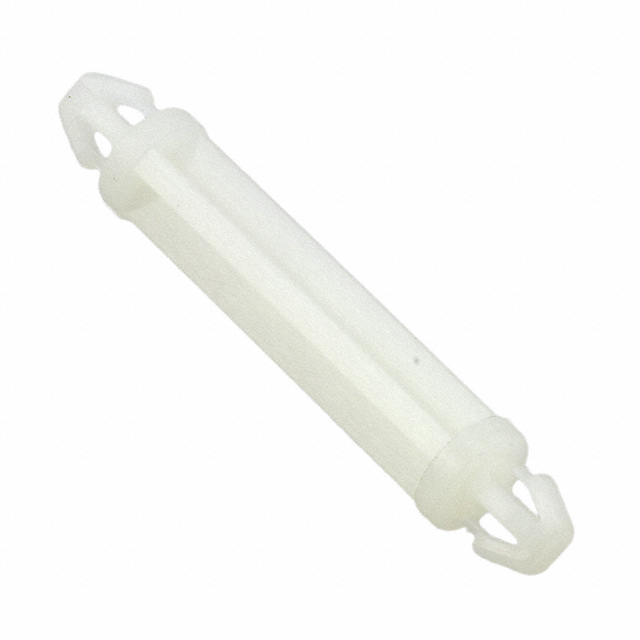

BRD SPT SNAP LOCK NYLON 18MM

Part	Mounting Panel Thickness	Mounting Panel Thickness [custom]	Material	Between Board Height [z]	Between Board Height [z]	Holding Type	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height
Essentra Components DLSP-1-18M-01	1.6 mm	0.063 in	Nylon	18 mm	0.709 in	Snap Lock	3.96 mm	5 32"	0.156 in	3.96 mm	0.15625 in	0.156 in	1.6 mm	0.063 in	Snap Lock
Essentra Components DLSP-1-4M-01	1.6 mm	0.063 in	Nylon			Snap Lock	3.96 mm	5 32"	0.156 in	3.96 mm	0.15625 in	0.156 in	1.6 mm	0.063 in	Snap Lock	0.551 in	14 mm	0.157 in	4 mm
Essentra Components DLSP-1-12M-01	1.6 mm	0.063 in	Nylon			Snap Lock	3.96 mm	5 32"	0.156 in	3.96 mm	0.15625 in	0.156 in	1.6 mm	0.063 in	Snap Lock	0.866 in	22 mm	0.472 in	12 mm

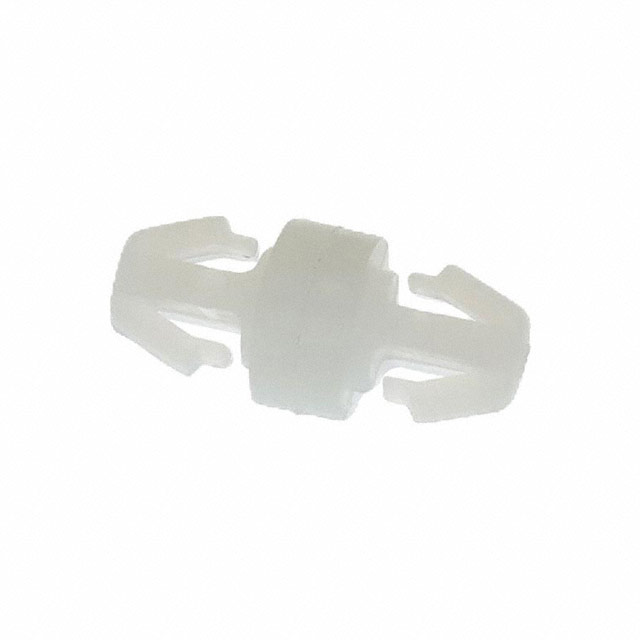

Essentra Components DLSP-1-3M-01	1.6 mm	0.063 in	Nylon	3 mm	0.118 in	Snap Lock	3.96 mm	5 32"	0.156 in	3.96 mm	0.15625 in	0.156 in	1.6 mm	0.063 in	Snap Lock	0.512 "	13 mm
Essentra Components DLSP-1-14M-01	1.6 mm	0.063 in	Nylon			Snap Lock	3.96 mm	5 32"	0.156 in	3.96 mm	0.15625 in	0.156 in	1.6 mm	0.063 in	Snap Lock	0.945 "	24 mm	0.551 in	14 mm
Essentra Components DLSP-1-10M-01	1.6 mm	0.063 in	Nylon	10 mm	0.394 in	Snap Lock	3.96 mm	5 32"	0.156 in	3.96 mm	0.15625 in	0.156 in	1.6 mm	0.063 in	Snap Lock	0.787 in	20 mm
