ETMA050400 Series

Manufacturer: CUI Inc.

Catalog

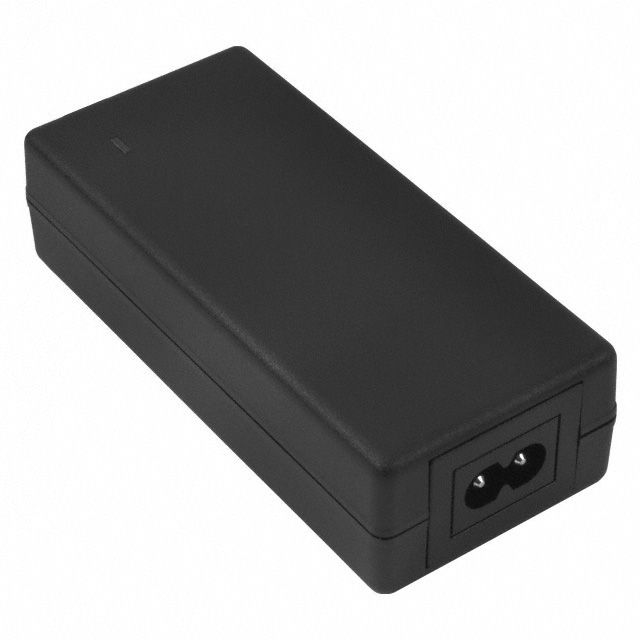

AC/DC DESKTOP ADAPTER 5V 20W

Part	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Polarization	Applications	Weight	Weight	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	No Load Power Consumption	Voltage - Output	Efficiency	Output Connector [diameter]	Output Connector	Output Connector [z]	Region Utilized	Cord Length	Cord Length	Form	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Input Connector	Output Connector [x]
CUI Inc. ETMA050400UD-P6RP-IC	Cord (Sold Separately)	1.97 in	110 mm	4.33 in	50 mm	30 mm	1.18 in	20 W	Positive Center	Medical	219.99 g	0.485 lb	EN FCC SIQ TUV UL	40 °C	0 °C	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	300 mW	5 V	Level V	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	International	720 mm	28.35 in	Desktop (Class II)	264 VAC	90 VAC	4 A	IEC 320-C8
CUI Inc. ETMA050400UD-P6P-IC	Cord (Sold Separately)	1.97 in	110 mm	4.33 in	50 mm	30 mm	1.18 in	20 W	Positive Center	Medical	219.99 g	0.485 lb	EN FCC SIQ TUV UL	40 °C	0 °C	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	300 mW	5 V	Level V	2.5 mm 5.5 mm	Barrel Plug		International	720 mm	28.35 in	Desktop (Class II)	264 VAC	90 VAC	4 A	IEC 320-C8	9.5 mm
