2SA1309 Series

Catalog

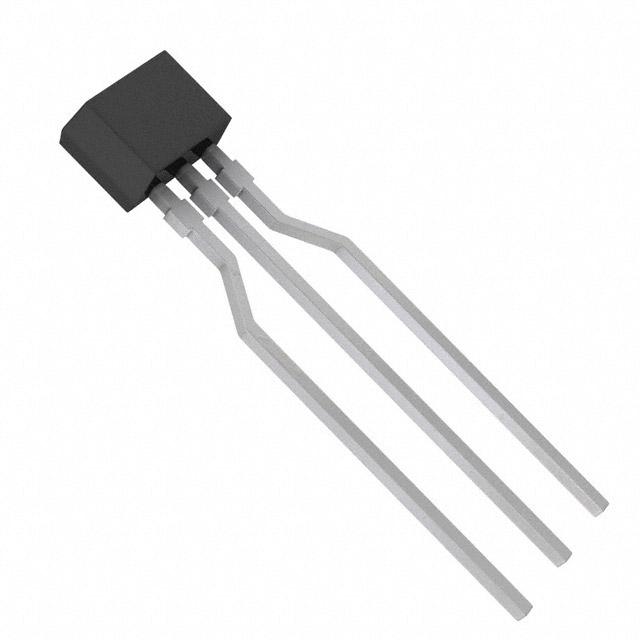

TRANS PNP 50V 0.1A NS-B1

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Mounting Type	Current - Collector Cutoff (Max) [Max]	Transistor Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Supplier Device Package
Panasonic Electronic Components 2SA1309AQA	160	0.3 V	50 V	150 °C	Through Hole	1 µA	PNP	3-SIP	100 mA	NS-B1
Panasonic Electronic Components 2SA1309A0A	160	0.3 V	50 V	150 °C	Through Hole	1 µA	PNP	3-SIP	100 mA	NS-B1
Panasonic Electronic Components 2SA1309ASA	290	0.3 V	50 V	150 °C	Through Hole	1 µA	PNP	3-SIP	100 mA	NS-B1
