CM1630 Series

4-, 6- and 8-Channel LCD and Camera EMI Filter Arrays with ESD Protection

Catalog

4-, 6- and 8-Channel LCD and Camera EMI Filter Arrays with ESD Protection

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Technology	Center / Cutoff Frequency	Package / Case	Number of Channels	Values	Filter Order	Applications	Mounting Type	Height [z]	Height [z]	Resistance - Channel (Ohms)	Type	Attenuation Value	ESD Protection	Number of Channels [custom]
ON Semiconductor CM1630-04DE	85 °C	-40 °C	1.35 mm	0.053 in	0.067 in	1.7 mm	RC (Pi)	200 MHz	8-UFDFN Exposed Pad	4	8.5 pF 100 Ohms	2nd	Data Lines for Mobile Devices	Surface Mount	0.022 in	0.55 mm	100 Ohms	Low Pass	25 dB

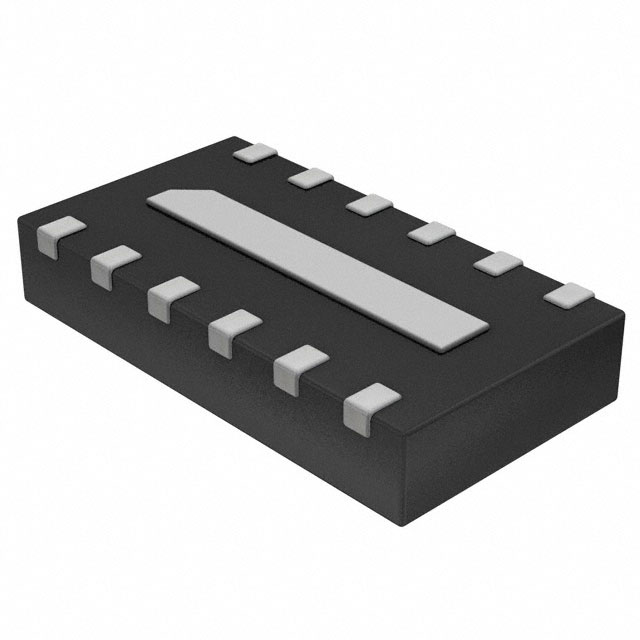

ON Semiconductor CM1630-06DE	85 °C	-40 °C	1.35 mm	0.053 in	0.098 "	2.5 mm	RC (Pi)	200 MHz	12-UFDFN Exposed Pad		8.5 pF 100 Ohms	2nd	Data Lines for Mobile Devices	Surface Mount	0.022 in	0.55 mm	100 Ohms	Low Pass	25 dB		6

Catalog

4-, 6- and 8-Channel LCD and Camera EMI Filter Arrays with ESD Protection

Key Features

• Four, six or eight channels of EMI suppression with integrated ESD

• Excellent attenuation of noise in the wireless carrier bands

Description

The CM1630 is a family of pi-style EMI filter arrays with ESD protection, which integrates four, six and eight filters (C-R-C) in small form factor UDFN 0.40mm pitch packages. The CM1630 has component values of 8.5pF-100 Ohm-8.5pF per channel. The CM1630 has a cut-off frequency of 200MHz and can be used in applications with data rates up to 80Mbps. The parts include ESD diodes on every pin, which provide a very high level of protection for sensitive electronic components that may be subjected to electrostatic discharge (ESD).
