SA04-11 Series
Manufacturer: Kingbright
Beta
⌘K

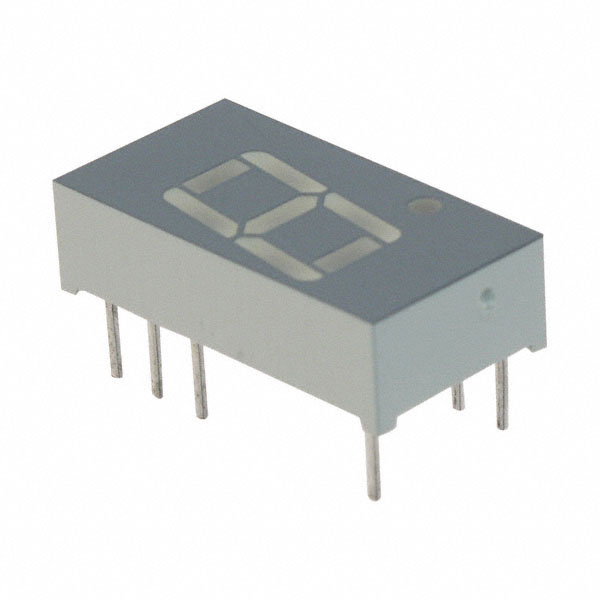

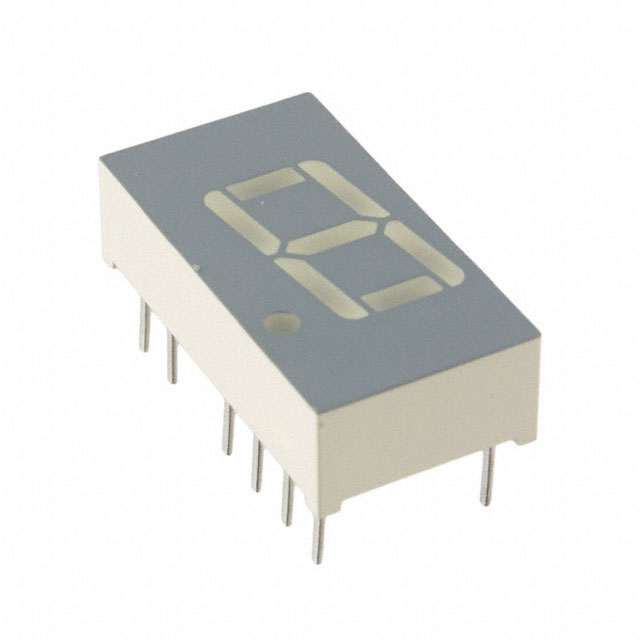

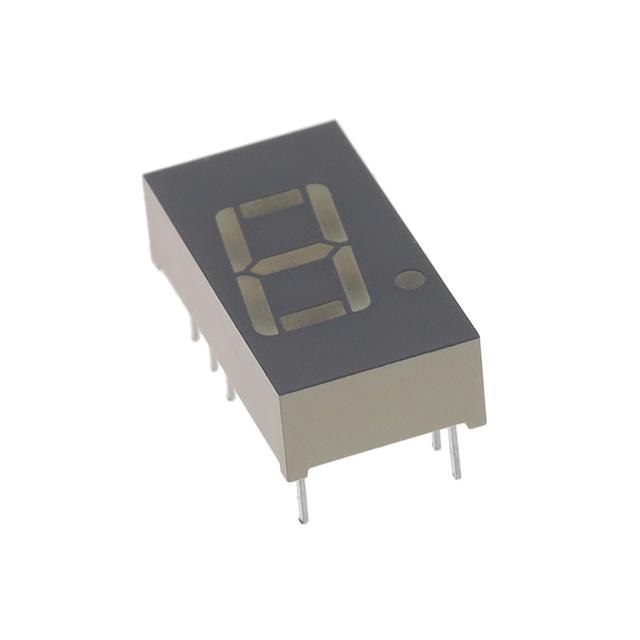

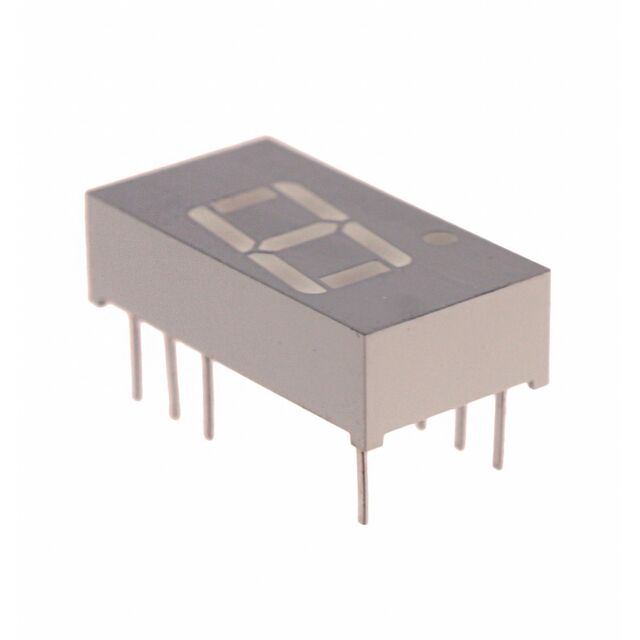

DISPLAY 7SEG 0.4" SGL GRN 14DIP
| Part | Power Dissipation (Max) [Max] | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Display Type | Current - Test | Package / Case | Package / Case | Millicandela Rating | Color | Common Pin | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 75 mw | 2.1 V | 10.16 mm | 0.4 in | 1 | 7-Segment | 20 mA | 14-DIP | 0.295 " 7.5 mm | 30 mcd | Green | Common Anode | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | |
Kingbright | 75 mw | 2 V | 10.16 mm | 0.4 in | 1 | 7-Segment | 20 mA | 14-DIP | 0.295 " 7.5 mm | 130 mcd | Yellow | Common Anode | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | 590 nm |
 Kingbright | 75 mw | 1.85 V | 10.16 mm | 0.4 in | 1 | 7-Segment | 20 mA | 14-DIP | 0.295 " 7.5 mm | 30 mcd | Red | Common Anode | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | 660 nm |
 Kingbright | 75 mw | 2 V | 10.16 mm | 0.4 in | 1 | 7-Segment | 20 mA | 14-DIP | 0.295 " 7.5 mm | 5.6 mcd | Red | Common Anode | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | 627 nm |
 Kingbright | 62.5 mW | 2.2 V | 10.16 mm | 0.4 in | 1 | 7-Segment | 20 mA | 14-DIP | 0.295 " 7.5 mm | 8.6 mcd | Green | Common Anode | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | 565 nm |
 Kingbright | 75 mw | 1.95 V | 10.16 mm | 0.4 in | 1 | 7-Segment | 20 mA | 14-DIP | 0.295 " 7.5 mm | 80 mcd | Red | Common Anode | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | 645 nm |
