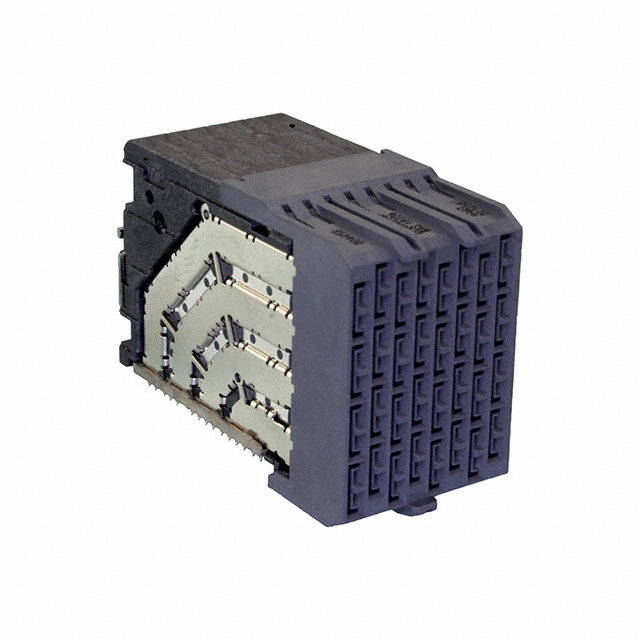

Impel Plus 90 Ohm, 4-Pair Right-Angle Daughtercard, 1.90mm Pitch, Right Guided, 16 Columns, 128 Circuits, Plated Through Hole Dimension 0.31mm
Impel Plus 90 Ohm, 4-Pair Right-Angle Daughtercard, 1.90mm Pitch, Right Guided, 16 Columns, 128 Circuits, Plated Through Hole Dimension 0.31mm
Impel Plus 90 Ohm, 4-Pair Right-Angle Daughtercard, 1.90mm Pitch, Right Guided, 16 Columns, 128 Circuits, Plated Through Hole Dimension 0.31mm
| Part | Number of Columns | Material Flammability Rating | Contact Finish | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Connector Usage | Mounting Type | Color | Number of Rows | Connector Style | Termination | Connector Type | Number of Positions | Pitch [x] | Pitch [x] | Contact Layout, Typical | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 8 | UL94 V-0 | Gold | Shielded | 85 °C | -55 °C | All | 0.75 A | 0.76 Ám | 30 Áin | 150 VAC | Daughtercard | Through Hole Right Angle | Black | 8 | Impel™ | Press-Fit | Blade Sockets Female Sockets Receptacle | 64 | 0.075 in | 1.9 mm | 32 Differential Pairs | |
 Molex | 16 | UL94 V-0 | Gold | Shielded | 85 °C | -55 °C | All | 0.75 A | 0.76 Ám | 30 Áin | 150 VAC | Daughtercard | Through Hole Right Angle | Black | 8 | Impel™ | Press-Fit | Receptacle Female Sockets | 128 | 0.075 in | 1.9 mm | 64 Differential Pairs |
