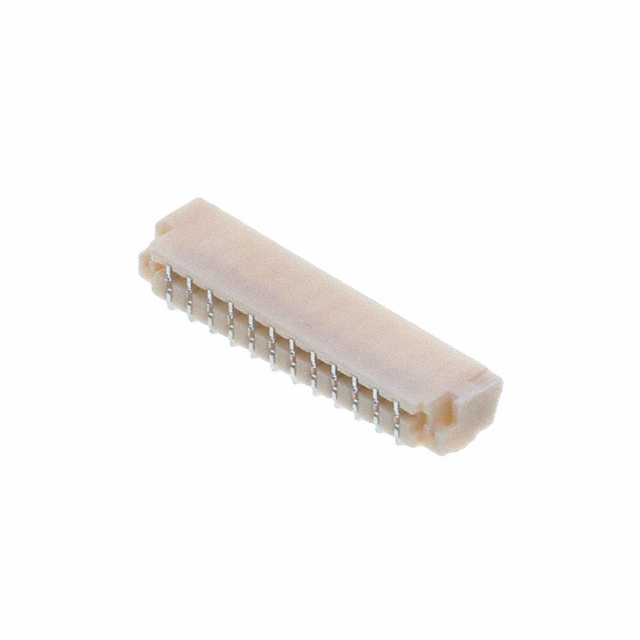

SM12B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 12POS 0.8MM
| Part | Current Rating (Amps) | Termination | Insulation Height [z] | Insulation Height [z] | Contact Shape | Contact Finish - Post | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Insulation Material | Contact Material | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions Loaded | Mounting Type | Connector Type | Insulation Color | Style | Number of Positions | Features | Shrouding | Contact Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.2 A 0.5 A | Solder | 0.069 in | 1.75 mm | Rectangular | Tin | Push-Pull | 85 °C | -25 °C | 30 VDC | Nylon Polyamide (PA) | Copper Alloy | 0.8 mm | 0.031 in | UL94 V-0 | All | Right Angle Surface Mount | Header | Natural | Board to Cable/Wire | 12 | Solder Retention | Shrouded - 4 Wall | Outer Shroud Contact | 1 |
