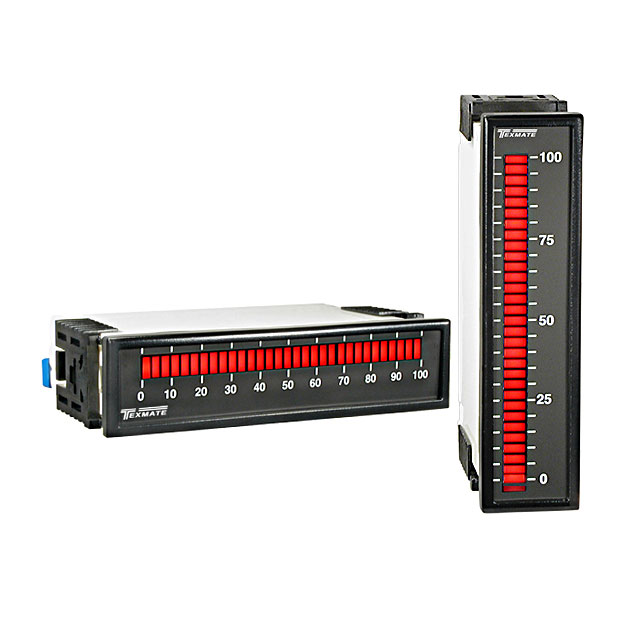

BX-B31 Series
Manufacturer: Texmate
Beta
⌘K
31 SEGMENT BARGRAPH. MEASURE 0-1
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Measuring Range [Min] | Measuring Range [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Termination Style | Type | Display Characters - Height [z] | Display Characters - Height [z] | Voltage - Supply [Max] | Voltage - Supply [Min] | Measuring Type | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texmate | 50 °C | 0 °C | 0 VDC 4 mA | 10 V 20 mA | 21.84 mm | 91.95 mm | Panel Mount | Screw Terminal | Process Meter | 0.15 in | 3.81 mm | 265 VAC 300 VDC | 85 VAC/DC 95 VDC | Process | LED - Red Bar Graph |
 Texmate | 50 °C | 0 °C | 4 mA | 20 mA | 21.84 mm | 91.95 mm | Panel Mount | Screw Terminal | Process Meter | 0.15 in | 3.81 mm | 265 VAC 300 VDC | 85 VAC/DC 95 VDC | Process | LED - Red Bar Graph |
