95645 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Fastening Type	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Type	Contact Shape	Termination	Number of Positions	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Finish - Post
Amphenol ICC (FCI) 95645-272HLF	Push-Pull	Unshrouded	Black	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.1 in	2.54 mm	0.35 in	8.89 mm	Through Hole	Male Pin	Square	Solder	72	Header	0.15 in	3.81 mm	2	15 µin	0.38 µm	Gold or Gold GXT™	Phosphor Bronze	2.54 mm	0.1 in	UL94 V-0

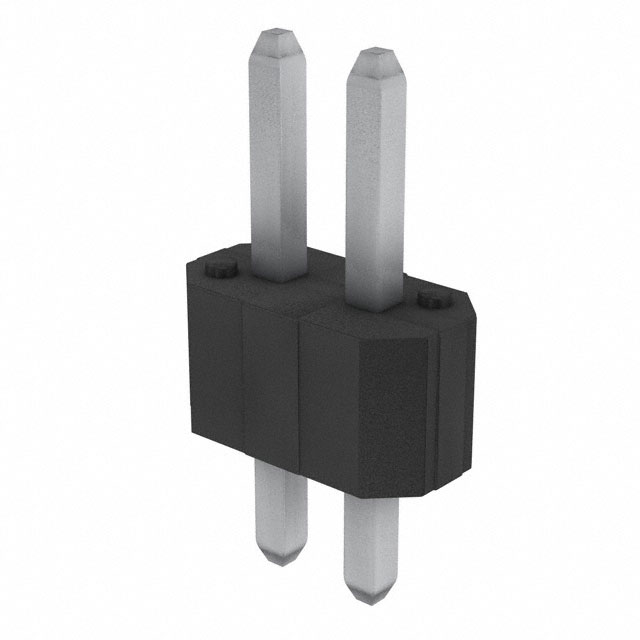

Amphenol ICC (FCI) 95645-402HLF	Push-Pull	Unshrouded	Black			All	2.54 mm	0.1 in	0.1 in	2.54 mm	0.35 in	8.89 mm	Through Hole	Male Pin	Square	Solder	2	Header	0.15 in	3.81 mm	2	100 çin	2.54 çm		Phosphor Bronze	2.54 mm	0.1 in	UL94 V-0	Tin
Amphenol ICC (FCI) 95645-272H	Push-Pull	Unshrouded	Black	0.1 in	2.54 mm	All	2.54 mm	0.1 in	0.1 in	2.54 mm	0.35 in	8.89 mm	Through Hole	Male Pin	Square	Solder	72	Header	0.15 in	3.81 mm	2	15 µin	0.38 µm	Gold or Gold GXT™	Phosphor Bronze	2.54 mm	0.1 in	UL94 V-0
