MKJ3B Series
Manufacturer: ITT Cannon, LLC
Catalog
TRINITY MKJ
...
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Shell Size - Insert | Fastening Type | Current Rating (Amps) | Shell Material | Orientation | Shell Finish | Ingress Protection | Number of Positions | Voltage Rating | Mounting Type | Termination | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Contact Finish - Mating | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | ||||||||||||||||||||||
ITT Cannon, LLC | ||||||||||||||||||||||
ITT Cannon, LLC | ||||||||||||||||||||||
ITT Cannon, LLC | ||||||||||||||||||||||
ITT Cannon, LLC | ||||||||||||||||||||||

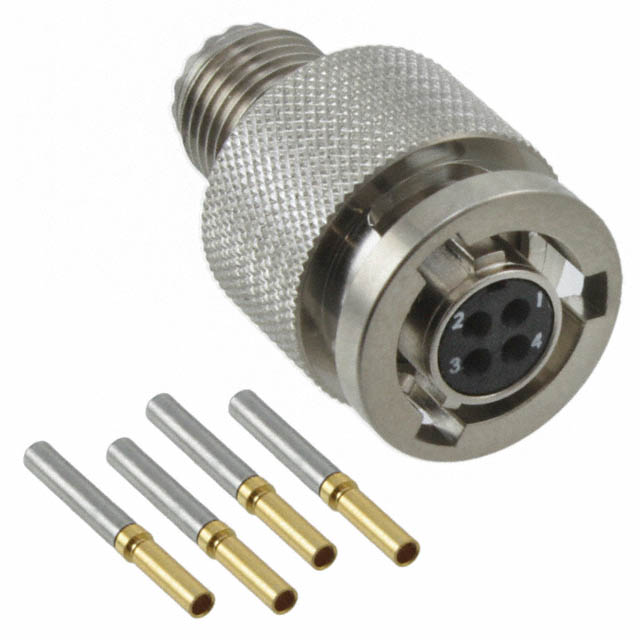

 ITT Cannon, LLC | 50 µin | 1.27 µm | Plug Female Sockets | 6-4 | Bayonet Lock | 5 A | Aluminum Alloy | N (Normal) | Electroless Nickel | Environment Resistant | 4 | 500 VAC | Free Hanging (In-Line) | Crimp | Shielded | -55 C | 150 °C | Metal | Gold | |||
ITT Cannon, LLC | ||||||||||||||||||||||
ITT Cannon, LLC | ||||||||||||||||||||||
ITT Cannon, LLC | ||||||||||||||||||||||

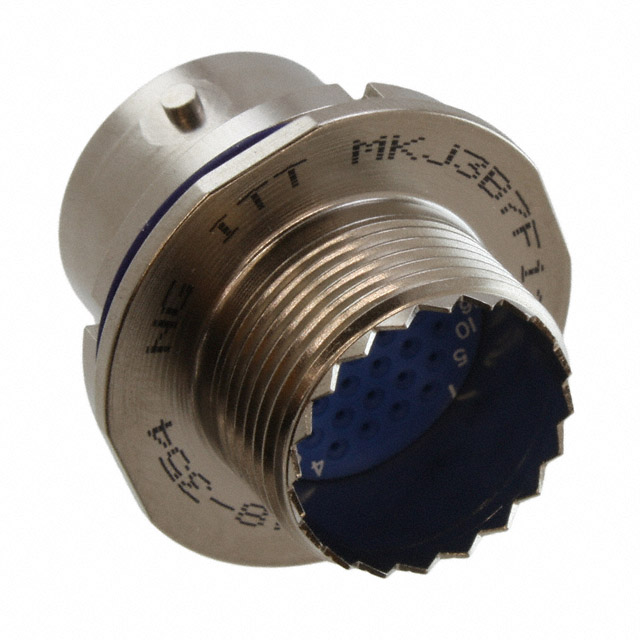

 ITT Cannon, LLC | 50 µin | 1.27 µm | Receptacle Male Pins | Bayonet Lock | 5 A | Aluminum Alloy | N (Normal) | Electroless Nickel | Environment Resistant | 37 | 500 VAC | Panel Mount | Crimp | Shielded | -55 C | 150 °C | Metal | Gold | 12 | 37 | Bulkhead - Front Side Nut |
