CLU550 Series
Manufacturer: Citizen Finedevice Co Ltd
Beta
⌘K

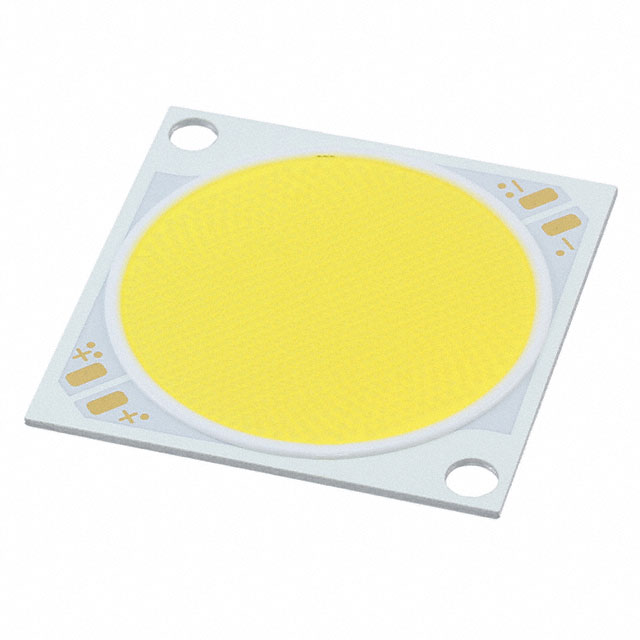

LED COB CLU550 NEUT WHT SQ 4000K
| Part | Size / Dimension [x] | Size / Dimension [y] | Lumens/Watt @ Current - Test | Type | Lens Type | Luminous Flux @ Current/Temperature | Configuration | CCT (K) | CCT (K) | Temperature - Test | Voltage - Forward (Vf) (Typ) | Current - Test | Height [z] | CRI (Color Rendering Index) | Current - Max [Max] | Color | Light Emitting Surface (LES) [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | 38 mm | 38 mm | 136 lm/W | Chip On Board (COB) | Flat | 33150 lm | Square | 4000 K | 3-Step MacAdam Ellipse | 85 °C | 103.9 V | 2.34 A | 1.4 mm | 80 | 4.68 A | Neutral White | 32.8 mm |
Citizen Finedevice Co Ltd | 38 mm | 38 mm | 148 lm/W | Chip On Board (COB) | Flat | 36000 lm | Square | 5000 K | 3-Step MacAdam Ellipse | 85 °C | 103.9 V | 2.34 A | 1.4 mm | 70 | 4.68 A | Cool White | 32.8 mm |
