BD4271HFP-C Series

550mA 5V Output LDO Regulator with WDT and Voltage Detector for Automotive

Catalog

550mA 5V Output LDO Regulator with WDT and Voltage Detector for Automotive

Part	Package / Case	Output Type	Grade	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Qualification	Number of Regulators	Control Features	Protection Features	PSRR	Output Configuration	Current - Output	Voltage Dropout (Max) [Max]	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
Rohm Semiconductor BD4271HFP-CTR	HRP-7	1.81 mOhm	Automotive	Surface Mount	45 V	5 V	AEC-Q100	1	Enable	Over Current Over Temperature Short Circuit	60 dB	Positive	550 mA	0.5 V	150 çA	150 °C	-40 °C	HRP7

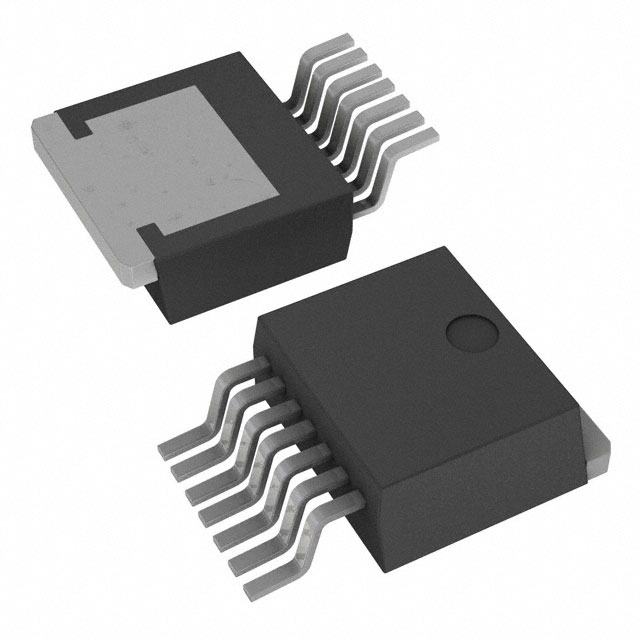

Rohm Semiconductor BD4271FP2-CE2	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	1.81 mOhm	Automotive	Surface Mount	45 V	5 V	AEC-Q100	1	Enable	Over Current Over Temperature Short Circuit	60 dB	Positive	550 mA	0.5 V	150 çA	150 °C	-40 °C	TO-263-7

Catalog

550mA 5V Output LDO Regulator with WDT and Voltage Detector for Automotive

Key Features

• AEC-Q100 qualified, Low ESR ceramic capacitors applicable for output, Low drop voltage: PDMOS output transistor, Power on and under-voltage reset, Programmable reset delay and watchdog time by external capacitor, Enable input, Over Current Protection (OCP), Thermal Shut Down (TSD)

Description

BD4271FP2-C is automotive voltage regulator with watchdog timer and offers the output current of 550mA while limiting the quiescent current low. A logical "HIGH" at the CTL pin enables the LDO regulator and "LOW" disables the LDO regulator and keeps current consumption low. A reset signal is generated for an output voltage VO of Typ 4.65V. The reset delay time and watchdog time (WDT) can be programmed by the external capacitor.
